MPCJR-RC | Series MPC Jr. pump controller with retransmission of input | 4 to 20 mA | Dwyer Instruments

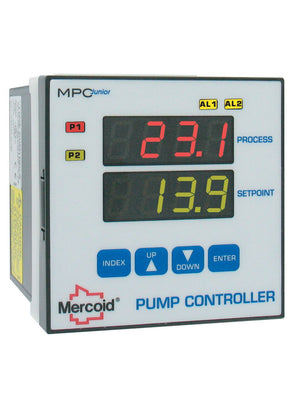

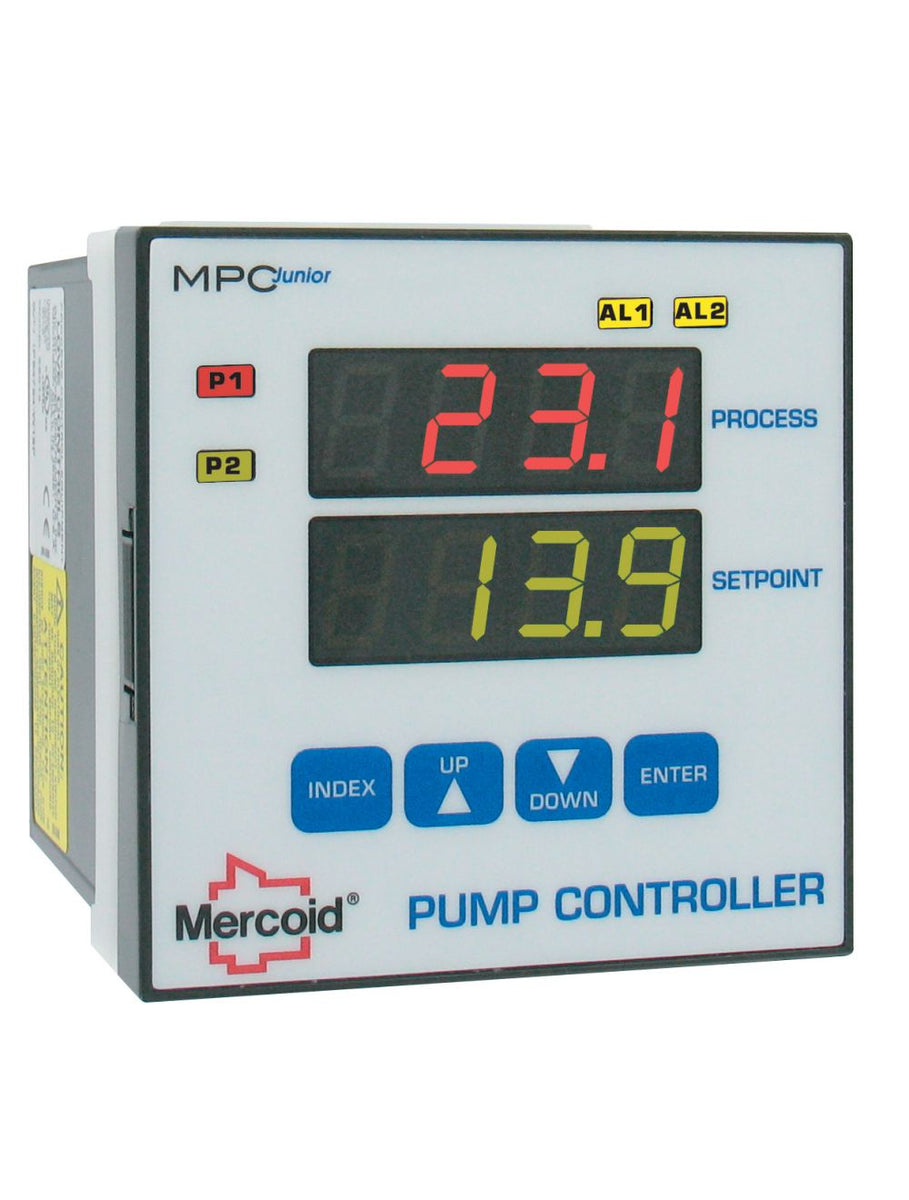

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MPCJR-RC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MPCJR-RC Documents

Instruction Manual Series MPCJR Catalog Page More Info

Overview

Details for MPCJR-RC

MPCJR-RC PUMP CONTROLLER WITH 4-20mA by Dwyer Instruments Dwyer Instruments' MPCJR-RC is a pump controller designed to provide precise control and monitoring of pumps in various industrial applications. It features a clear and easy-to-read LCD display that provides real-time data on pump performance, including flow rate, pressure, and temperature. The MPCJR-RC utilizes a durable construction with a NEMA 4X enclosure, ensuring reliability and longevity even in harsh environments. It supports a wide range of pump types, including centrifugal, positive displacement, and diaphragm pumps, making it a versatile solution for diverse industrial needs. With its advanced control algorithms, the MPCJR-RC enables precise flow rate and pressure regulation, optimizing pump performance and reducing energy consumption. The 4-20mA output allows for seamless integration with other control systems or data acquisition devices. Applications: - Chemical processing - Pharmaceutical manufacturing - Water and wastewater treatment - HVAC systems - Irrigation systems Benefits: - Precise pump control for optimized performance - Durable construction for harsh environments - Compatible with various pump types - Clear LCD display for easy monitoring - Energy-efficient operation Our HVAC supply store offers the MPCJR-RC PUMP CONTROLLER WITH 4-20mA at competitive prices and ensures fast shipping for all your industrial supply needs.

Series MPCJR Pump Controller

One or Two Pump Control with Built-In Alternation

The Mercoid MPC Junior Pump Controller provides versatile level control in a standard 1/4 DIN package. Designed for use with almost any style level transmitter the unit displays the present level and main set point value. Incorporated in the MPC Jr. is programmable level differential for on/off control of one or two pumps, valves, or other devices through two SPDT relays. Also featured are two additional programmable alarm contacts with front alarm light indication.

The MPC Jr. is flexible and incorporates a user-friendly programming menu. The front face meets NEMA 4X for outdoor panel mounting.

Product Applications

Water and wastewater
Sump and sludge pits, clarifiers, digesters
Chemical storage tanks
Oil tanks
Reservoirs

Selectable pump alternation when used with two pumps to minimize pump wear
Integral 24 VDC power supply for transmitter
User selectable security lock-out of programming and/or set points
Optional process input retransmission as a current (4 to 20 mA) or voltage (2 to 10 VDC) analog signal
Analog output on pump "on" condition for activation of separate pump run time meters

Specifications

Series: MPCJR Pump Controller
Category/Type: Level
Type: Pump Controllers
Series: MPCJR Pump Controller
Inputs: 4 (or 0) to 20 mA DC or 2 (or 0) to 10 VDC selectable.
Input Impedance: Current = 10 ohms; Voltage = 5 K ohms.
Output Ratings: Control Relays: SPDT; rated 10 A @ 240 VAC res.; 1/4 hp @ 120 VAC; 1/3 hp @ 240 VAC; Alarm Relays: SPST; 3 A @ 240 VAC res.; 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two.
Control Type: On/off; reverse (pump out) or direct (pump in) acting.
Power Requirements: 100 to 240 VAC nominal; +10%-15%; 50 to 400 Hz; single phase; 132 to 240 VDC nominal; +10%-15%.
Power Consumption: 7.5 VA maximum.
Accuracy: ±0.25% of span; ±1 least significant digit.
Display: Two 4-digit; 7 segment 0.56" high LEDs.
Display Resolution: 1 count.
Memory Backup: Nonvolatile memory (no batteries required).
Serial Communications: Optional RS-232 or RS-485 with Modbus® protocol.
Ambient Operating Temperature/RH: 14 to 131°F (-10 to 55°C); 0 to 90% up to 104°F (40°C) non-condensing; 10 to 50% at 131°F (55°C) non-condensing.
Weight: 16 oz (454 g).
Front Panel Rating: Meets UL Type 4X (IP66).
Loop Power Supply (isolated): 24 VDC @ 50 mA; regulated.
Agency Approvals: cULus.
: NOTE: For compatible level transmitters; see Mercoid Series PBLT2/PBLTX and SBLT2/SBLTX.
