Series MP Mini-Photohelic® Differential Pressure Switch/Gage

Compact, Low Cost Switch/Gage

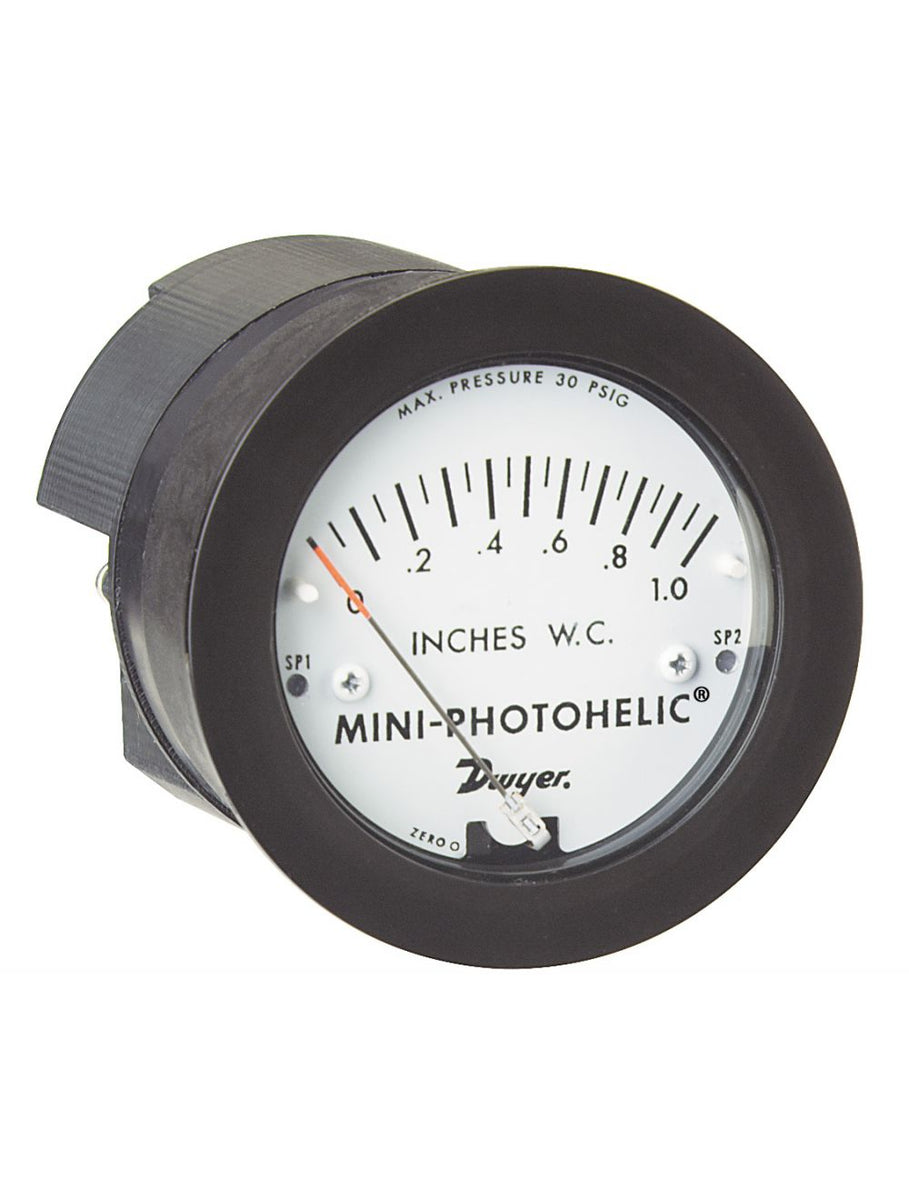

The Series MP Mini-Photohelic® Differential Pressure Switch/Gage combines the time proven Minihelic® II differential pressure gage with two SPDT switching set points. The Mini-Photohelic® switch/gage is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gage. Set points are adjusted with push buttons on the back of the unit.

NIST CALIBRATION available in Product Configurator.

Product Applications

Fume hoods
Dust collection
Pneumatic conveying
Clean room

Gage reading unaffected by switch operation and will continue to read pressure even during power loss
Visible switch status LED provides indication of set point switching state
Compact design but with the power of larger devices can meet the same application specifications

Specifications

Series: MP Mini-Photohelic® Differential Pressure Switch/Gage
Category/Type: Pressure
Type: Differential Pressure
Series: MP Mini-Photohelic® Differential Pressure Switch/Gage
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Pressure Limits: 30 psig (2.067 bar).
Temperature Limits: 20 to 120°F (-6.7 to 49°C).
Process Connections: Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
Size: 4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter.
Weight: 23 oz (652 g).
: SWITCH SPECIFICATIONS
Switch Type: (2) SPDT relays.
Electrical Rating: 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC.
Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire.
Power Requirements: 24 VDC / 24 VAC 50/60 Hz 4 W.
Mounting Orientation: Gage face in vertical position.
Set Point Adjustment: Push buttons.
Standard Accessories: (2) mounting screws; (1) .050" hex allen wrench.
Agency Approvals: CE; cULus.
