MMF-1 | Flowmeter | range .1-1 SCFH air. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MMF-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MMF-1 Documents

MM Mini-Master®MMA Instruction Manual Series MM Catalog Page More Info

Overview

Details for MMF-1

MMF-1 Mini-Master Flowmeter by Dwyer Instruments The Dwyer Instruments MMF-1 is a versatile and compact flowmeter designed to measure flow rates of gases with a range of 0.1 to 1 SCFH. It features a durable aluminum construction for corrosion resistance and a high-precision glass tube for accurate readings. Key Features: * Measures gas flow rates from 0.1 to 1 SCFH * Aluminum construction for durability and corrosion resistance * High-precision glass tube for accurate readings * Easy-to-read scale with 0.05 SCFH increments Benefits: * Provides precise flow measurement for various gases * Durable construction ensures long-term operation * Compact design allows for easy installation * Easy-to-read scale simplifies monitoring Applications: * Monitoring flow rates in medical devices * Calibrating gas flow equipment * Verifying gas flow in process control systems * Educational and research purposes Shop our HVAC supply store now for the best prices and fast shipping on Dwyer Instruments flowmeters and a wide range of industrial supplies.

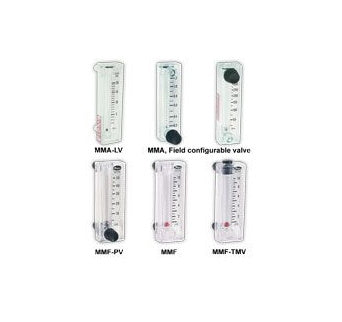

Series MM Mini-Master® Flowmeter

2" or 1-1/2" Scale, Configurable Valve Option

The Series MM Mini-Master® Flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. The Series MMA is a 2" (51 mm) scale flowmeter that is user configurable with or without non-removable top or bottom front mounted metering valves. It is constructed from transparent nylon material providing high chemical resistance and is easily disassembled via the provided key for cleaning or reconfiguration. The Series MMF is a 1-1/2" (38 mm) scale compact flowmeter ideal for measuring small volume air. It features bezel type mounting that can be quickly installed from the front of the instrument panel.

Note: Only the MMA is available in the Product Configurator.

Product Applications

Medical equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Low installation costs with easy mounting
Long operation life with durable construction
Precision molding enables high repeatability
White back on the flow tube allows for better visibility of the float increasing reading accuracy
Side printed scale graduations allows for instantaneous flow reading saving time
Compact bodies require minimal panel space freeing valuable space

Specifications

Series: MM Mini-Master® Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: MM Mini-Master® Flowmeter
: MMA
Service: Compatible gases and liquids.
Wetted Materials: Body: Nylon 12; O-rings: Buna-N (optional materials available); Float: Black glass; K monel; stainless steel; tungsten carbide.
Temperature Limit: 130°F (54°C).
Pressure Limit: 100 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp.
Accuracy: ±4% FS.
Process Connection: 5/16" OD for push on rubber or plastic tubing with provided spring tubing clamp. Connect to rigid tubing with double compression fitting.
Weight: 1 oz (28.35 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: MMF
Service: Compatible gases and liquids.
Wetted Materials: Body: Styrene acrylonitrile; Float: SS; black glass; nylon; Valve: Polyurethane.
Temperature Limit: 125°F (51°C).
Pressure Limit: 50 psi (3.4 bar); Valve option: 10 psi (0.6 bar).
Accuracy: ±10% FS.
Process Connection: 1/4" OD for push on rubber or plastic tubing. Connect to rigid tubing with double compression fittings.
Weight: 0.5 oz (14.17 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
