MKL2-C050/70-0121 | 2 Way High Performance Butterfly Valve | Seat Retainer Downstream | 5 Inch | 120V Non Spring Return Actuator | Bray Commercial

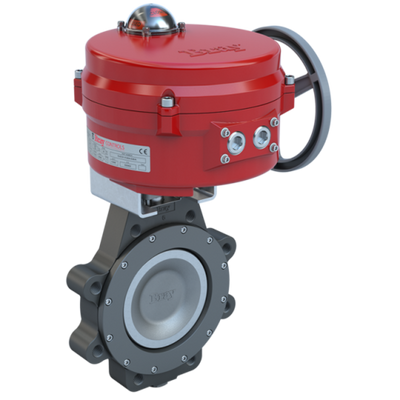

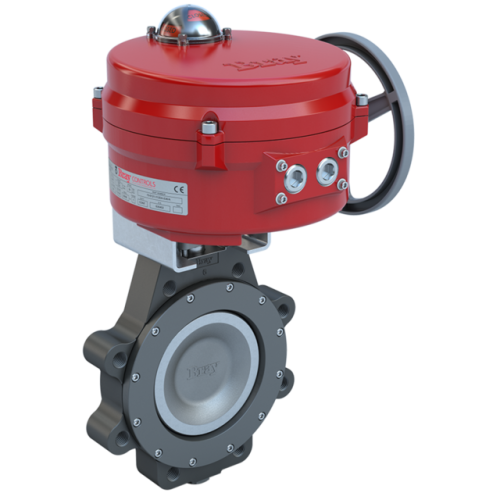

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MKL2-C050/70-0121

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial MKL2-C050/70-0121 Documents

Bray MKL2-C050/70-0121 Catalog Bray MKL2-C050/70-0121 Submittal Bray MKL2-C050/70-0121 Installer's Guide Bray MKL2-C050/70-0121 Specifications Bray 70-0121 Catalog Bray 70-0121 Submittal Bray 70-0121 Installer's Guide Bray 70-0121 Specifications More Info

Overview

Details for MKL2-C050/70-0121

The Bray Commercial MKL2-C050/70-0121 is a heavy-duty 5" butterfly valve designed for industrial piping applications. This rugged and reliable valve features a lug-style body with a 70-0121 actuator. Crafted from durable materials, the MKL2-C050/70-0121 can withstand high pressures and temperatures. Its solid brass body and stainless steel stem ensure corrosion resistance and longevity. The actuator, made of carbon steel, provides precise control over valve operation. With its exceptional flow capacity, the MKL2-C050/70-0121 is ideal for industrial applications such as chemical processing, wastewater treatment, and power generation. Its lug-style design allows for easy installation and removal, reducing maintenance downtime. Our HVAC supply store is your go-to source for industrial valves and components. Order your Bray Commercial MKL2-C050/70-0121 today and experience the best prices and fast shipping. Our commitment to quality products and customer satisfaction ensures that you receive the equipment you need, when you need it. Upgrade your industrial operations with Our HVAC supply store - your trusted partner for reliable and efficient solutions.

Description:

Bray MKL2-C050/70-0121 2 Way High Performance Butterfly Valve, Seat Retainer Downstream, 5 Inch, 120V Non Spring Return Actuator.

High performance butterfly valve model MKL2-C050 features:

- Seat retainer downstream.

- 5 inch.

- 125 mm.

- 285 PSI close-off.

- 90 degree 790 Cv.

- 60 degree 360 Cv.

- 2-way flow.

- Normally closed.

- ANSI class 150.

- Double offset stem / disc design.

- Blow out proof stem.

- Energized RTFE seat.

- Pressure assisted, but not pressure dependent design.

- Adjustable PTFE packing.

- Dead end rating equal to nominal pressure rating.

- Carbon steel body.

- 316 stainless steel disc.

- 17-4 stainless steel stem.

- For use with hot water, chilled water, condenser water and steam.

Factory installed actuator model 70-0121 features:

- 120 VAC.

- On/Off.

- NEMA type 4, 4x and IP65 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

- Optional 5 watt PTC style heater.

Bray’s MK Series High Performance Butterfly Valves are available in ANSI Class 150 and 300. Bray's high performance butterfly series is used in Building Automation, Temperature Controls, HVAC 2-Way and 3-Way Assemblies, Chilled Water, Hot Water, Steam, and Special Applications. The Bray/McCannalok MK Series high performance butterfly valves set the quality and design standard by which all other high performance valves are measured. The MK Series is ideally suited to high pressure, high temperature, and high cycle HVAC applications as well as mission critical HVAC applications.

Available in ANSI Class 150 ratings, both 2-way and 3-way, and ANSI Class 300 ratings in 2-way configurations, Bray’s MK Series valves are provided with a wide variety of direct mount Bray electric and pneumatic actuators and accessories. All valves are tested for bubble-tight closeoff to API 598 standards at maximum rated differential pressure.

Bray Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V
Flow:2 Way
Return Position:Non-Spring Return
Valve Size (In.):5

Specifications

Product: MKL2-C050/70-0121
Valve Size: 5"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 790
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 285
Weight: 60.1
