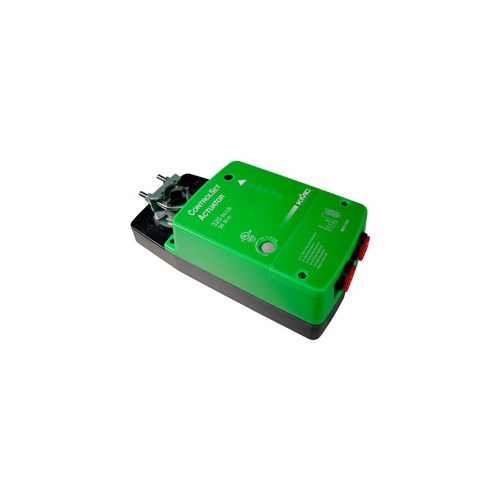

MEP-7553 | Damper Actuator | 180 in-lb | Electronic Fail-Safe | 24V | Floating | KMC Controls

KMC Controls MEP-7553: High-Performance Linear Actuator The KMC Controls MEP-7553 is a robust linear actuator engineered to deliver exceptional precision and reliability in demanding industrial applications. With a 24V operating voltage, this actuator generates a remarkable 180 pounds of force, ensuring smooth and efficient operation. Its compact design makes it suitable for space-constrained environments, while its durable construction guarantees longevity in harsh conditions. Key specifications include a stroke length of up to 90-115 seconds, providing ample reach for various applications. The actuator's advanced design features a precision-engineered lead screw and ball bearings, ensuring accurate and repeatable positioning. It is IP65 rated, providing excellent protection against dust and water ingress, making it ideal for demanding industrial environments. The MEP-7553 linear actuator is widely used in industrial automation, manufacturing, packaging, and material handling systems. It is a reliable solution for applications requiring precise linear motion, making it an indispensable tool for industrial engineers and maintenance professionals. Shop our HVAC supply store today to experience the best prices and fast shipping on this exceptional KMC Controls linear actuator. Empower your industrial operations with reliable and efficient motion control!

These powerful, efficient, durable, direct-coupled actuators provide tri-state or proportional control for large control air dampers or valves in HVAC systems. A minimum torque of 180 or 320 in-lb. is available over the 94° angular rotation. Capacitor-driven fail-safe models provide durable, efficient operation with switch-selectable fail direction.

The proportional actuator models accept a 0–10 VDC, 2–10 VDC, or 4–20 mA control signal input from a thermostat, controller, or building automation system. “Anti-jitter” circuitry significantly reduces hunting and needless wear on the actuator and valve packing or damper components (from unnecessary miniscule position changes caused by undamped analog input signals). A user-initiated, auto-mapping feature provides more precise equipment control by reassigning the (0–10 VDC, 2–10 VDC, or 4–20 mA) input signal range over a reduced rotation range (from 45° to 94°). Proportional input models also feature a switch-selectable, voltage feedback output that is proportional to the actuator position. With the 0–10 VDC input, feedback options are 0–5 or 0–10 VDC, and with 2–10 VDC or 4–20 mA inputs, feedback options are 1–5 or 2–10 VDC.

The tri-state models are designed for use with floating thermostats, controllers, or building automation systems. They feature an optional 10K ohm (±10%), three-wire potentiometer feedback output. Fail-safe models also allow two-position control as well.

All actuators mount directly on 3/8″ up to 1.05″ round or 5/16″ up to 5/8″ square shafts, eliminating the need for expensive and complicated linkages. A non-rotation bracket, to prevent lateral movement, is included with each actuator. A gear disengagement button allows manual positioning of the damper and/or gear train without energizing the actuator. Removable terminals and 1/2″ NPS conduit fittings make wiring easier. The actuators are protected against overloading and do not require end or limit switches.

(If lower torque is required, see also the MEP-4200/4500/4900 series.
