Overview
Details for MEP-5071

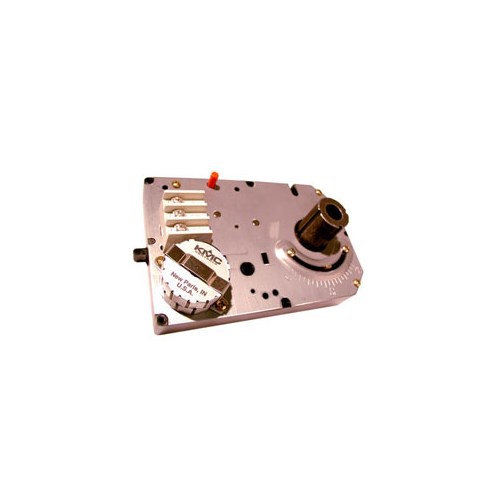

The KMC MEP-5061/5071 3-wire ControlSet Actuators are designed to control small damp?ers such as air terminal unit dampers or VEP-40 se?ries valves. The MEP-5061 is an 18?/minute actuator andthe MEP-5071 is a 60?/minute actuator.The actuator mounts to a 1/2” or 3/8” diameter damper shaft, eliminating the need for expensive and complicated linkages. When mounting to a 3/8” diameter shaft, the HFO-0011 shaft adaptor is required and must be ordered separately. These bidirectional motors may be controlled via an SPDT floating thermostat or building automation system. A minimum of 50 in-lb of torque over the maximum angular rotation of 95? is provided. Both minimum and maximum end stops are stan?dard to limit the rotation. A gear disengagement feature al?lows positioning of the damper and/or gear train without en?er?giz?ing the actuator.An optional feedback potentiometer and/or a single, dou?ble or triple auxiliary switch can be field added.(The MEP-5063/5065/5073 actuators are obsolete. See the MEP-5061/5071 instead.)
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- Control Input
24 VAC
- Fail-Safe
No
- Input Types
Tri-state
- Mounting
V-Bolt/ Screws
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC
- Selection Guide
Actuator-Only
- Timing (sec)
60 Deg/ min
- Torque
50 in-lb
