MEP-4501 | Damper Actuator | 45 in-lb | Non-Spring Return | 24V | Floating | KMC Controls

KMC Controls MEP-4501 Non-Serialized 24V 2-Position Tristate Contactor The KMC Controls MEP-4501 is a compact and efficient 24V contactor designed for non-serialized applications in industrial control systems. This two-position tristate contactor boasts the following features and benefits: Non-Serialized Compact Design: Eliminates the need for serial numbers, simplifying inventory management and reducing space requirements. 2-Position Tristate Mode: Provides three operating states: make, break, or center detent, enabling versatile control of electrical circuits. 24V DC Operation: Ideal for systems powered by 24V DC power sources, such as solar panels or batteries. Robust Construction: Durable construction ensures reliability and longevity in demanding industrial environments. Wide Application Range: Suitable for various industrial control applications, including robotics, automation, and electrical distribution systems. Shop our HVAC supply store today for the best prices and fast shipping on all KMC Controls products!

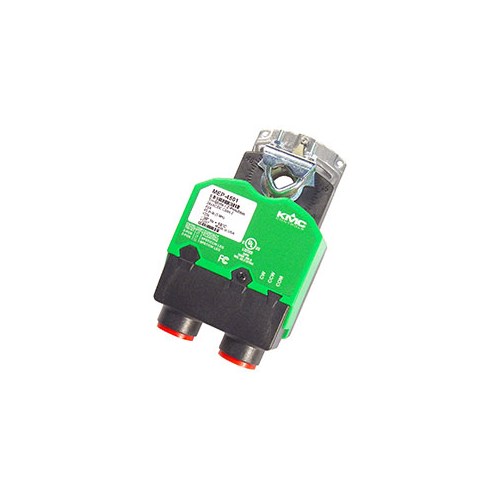

These compact but powerful direct-coupled ControlSet? actuators provide fast and accurate tri-state floating or two-position control for dampers or valves in HVAC systems. A minimum torque of 25 (MEP-4201), 45 (MEP-4501), or 90 (MEP-4901) in-lb. is available over the 95? angular rotation in 35 seconds or less (or 45 seconds for the MEP-4901).

These non-fail-safe models are designed for use with floating thermostats or controllers or for two-position control (dependent on wiring and switch configuration). A patented noise reducer provides whisper-quiet operation.

All actuators mount directly to 1/4- to 5/8-inch (6 to 16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm) square shafts, eliminating the need for expensive and complicated linkages. A non-rotation bracket, to prevent lateral movement, is included with each actuator. A gear disengagement button allows easy manual positioning of the actuator.

(For similar actuators with fail-safe, see the MEP-4200/4500/4900 Series.)
