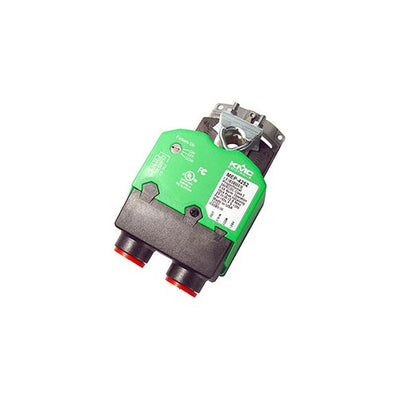

MEP-4254V | Valve Actuator | 25 in-lb | Electronic Fail-Safe | 24V | On/Off | KMC Controls

MEP-4254V 2-Position 24VAC/DC 25inLB Quick-Mount Limit Switch The MEP-4254V limit switch from KMC Controls is designed to provide highly accurate and reliable position sensing in industrial environments. Featuring 2 positions and a voltage range of 24VAC/DC, this switch offers versatility for various applications. Crafted with durable construction, the MEP-4254V is engineered to withstand harsh industrial conditions. Its compact design of 25 inches makes it easy to integrate into tight spaces. The switch's quick-mount design allows for fast and convenient installation, saving time and effort during setup. This limit switch offers exceptional precision and repeatability, ensuring accurate position detection. Its 25inLB torque rating provides reliable operation even under demanding loads. In conclusion, our HVAC supply store is your go-to source for the MEP-4254V limit switch and a wide range of industrial products. We provide competitive prices and fast shipping to keep your operations running smoothly. Trust our HVAC supply store for all your industrial supply needs!

These compact but powerful direct-coupled ControlSet actuators provide two-position, tri-state, or proportional control for dampers or valves in HVAC systems. Efficient, durable, capacitor-driven fail-safe with switch-selectable direction provides consistent torque in both powered and fail-safe modes. A patented noise reducer provides whisper-quiet operation in both modes. A minimum torque of 25 (MEP-42xx), 45 (MEP-45xx), or 90 (MEP-49xx) in-lb. is available over the 95° angular rotation.

MEP-4xx2 proportional models accept either a 0–10 or 2–10 VDC control signal input from a thermostat, controller, or building automation system. “Anti-jitter” circuitry significantly reduces hunting and needless wear (from unnecessary miniscule position changes caused by undamped analog input signals) on the actuator, valve, or damper components. A user-initiated, auto-mapping feature provides more precise equipment control by reassigning the input signal range over a reduced rotation range. These models also feature a switch-selectable, 0–5 or 0–10 (or 1–5 or 2–10) VDC voltage feedback output that is proportional to the actuator position. (MEP-4252 shown in photo.)

MEP-4xx1 tri-state/two-position models are designed for use with floating thermostats, controllers, or building automation systems. MEP-4xx4/4xx5 two-position models are available in 24 VAC/VDC or 100-240 VAC models.

MEP-4x7x models also have one fully adjustable, built-in SPDT auxiliary switch for remote position indication or equipment interface. MEP-497x models include a second fixed switch at 10° from full CW direction. A three-foot cable is included with the switch(es).

MEP-4xxxV actuators have brackets with a patented, quick-mounting mechanism that mounts directly on VFB-43…BC and VFB-46…BC series valve bodies.

All actuators mount directly to 1/4- to 5/8-inch (6 to 16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm) square shafts, eliminating the need for expensive and complicated linkages. A non-rotation bracket, to prevent lateral movement, is included with each actuator. A gear disengagement button allows easy manual positioning of the actuator.

(For similar actuators without fail-safe, see the MEP-4201/4501/4901 and the MEP-4000/4800 series. If higher torque is required, see the MEP-7500/7800 series.)
