MCS-111050 | Solid Core Mini Current Switch. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MCS-111050

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MCS-111050 Documents

Instruction Manual Series MCS Catalog Page MCS More Info

Overview

Details for MCS-111050

SOLID CORE MINI CURRENT SWITCH The Dwyer Instruments MCS-111050 is a rugged and reliable current switch designed to provide safe and accurate monitoring of electrical current in industrial applications. Its solid-core design ensures exceptional accuracy and durability, making it ideal for critical applications where precision is paramount. Key Features: * Solid-core construction for superior precision and stability * Wide current range (0-5A) for versatility * DIN rail mountable for easy installation * Compact design for space-saving efficiency * UL listed for safety and reliability Applications: * Monitoring electrical current in motors, pumps, and compressors * Fault detection and protection * Data acquisition and control systems * Energy management and conservation Technical Specifications: * Accuracy: Â±1% of reading * Repeatability: Â±0.5% of reading * Operating Temperature: -40Â°F to 158Â°F (-40Â°C to 70Â°C) * Output: 0-5VDC * Power Supply: 12-32VDC Shop our HVAC supply store today for unbeatable prices and fast shipping on the Dwyer Instruments MCS-111050 Solid Core Mini Current Switch!

Series MCS Miniature Current Switch

Low Cost, Solid or No Core, LED Confirmation, Adjustable Set Point

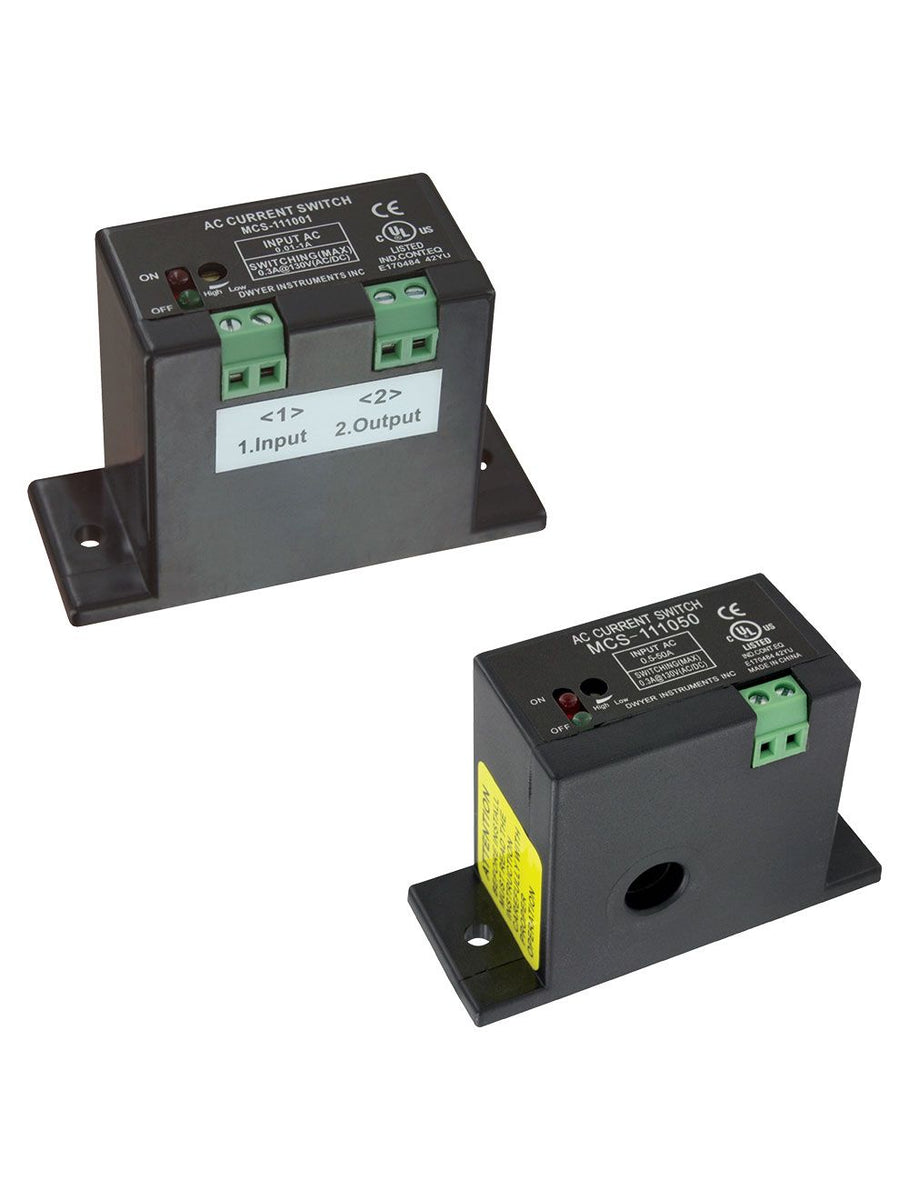

The Series MCS Miniature Current Switches are ideal for monitoring the current usage in fuse boxes and small control panels. Both models have adjustable set points and LED indication to show there is power to the unit and when the switch activates. Set points can be adjusted using the potentiometer next to the LED’s. Due to the size of the switch, it is only offered in solid core and no core versions. The no core version has terminal blocks which can accept currents up to 1 A directly into the unit.

Integral mounting flange for quick installation
Compact size fits in any space

Specifications

Series: MCS Miniature Current Switch
Category/Type: Process Control
Type: Current Transformers / Switches
Series: MCS Miniature Current Switch
Amperage Range: MCS-111050: 0.5 to 50 A AC continuous; MCS-111001: 0.01 to 1 A AC continuous.
Output Rating: Isolated; N.O. 0.3 A @ 130 V DC/AC.
Power Requirements: None; self-powered.
Hysteresis: 1%.
Response Time: <200 ms.
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 10 to 95% RH (non-condensing).
Enclosure Rating: UL 94V-0 flammability rated ABS; insulation class600 V.
Weight: 0.5 oz (14.5 g).
Agency Approvals: CE; RoHS; cUL; UL.
