MARK II-25 | Molded plastic manometer | range 0-3" w.c. | red fluid | .826 sp. gr. | Dwyer Instruments

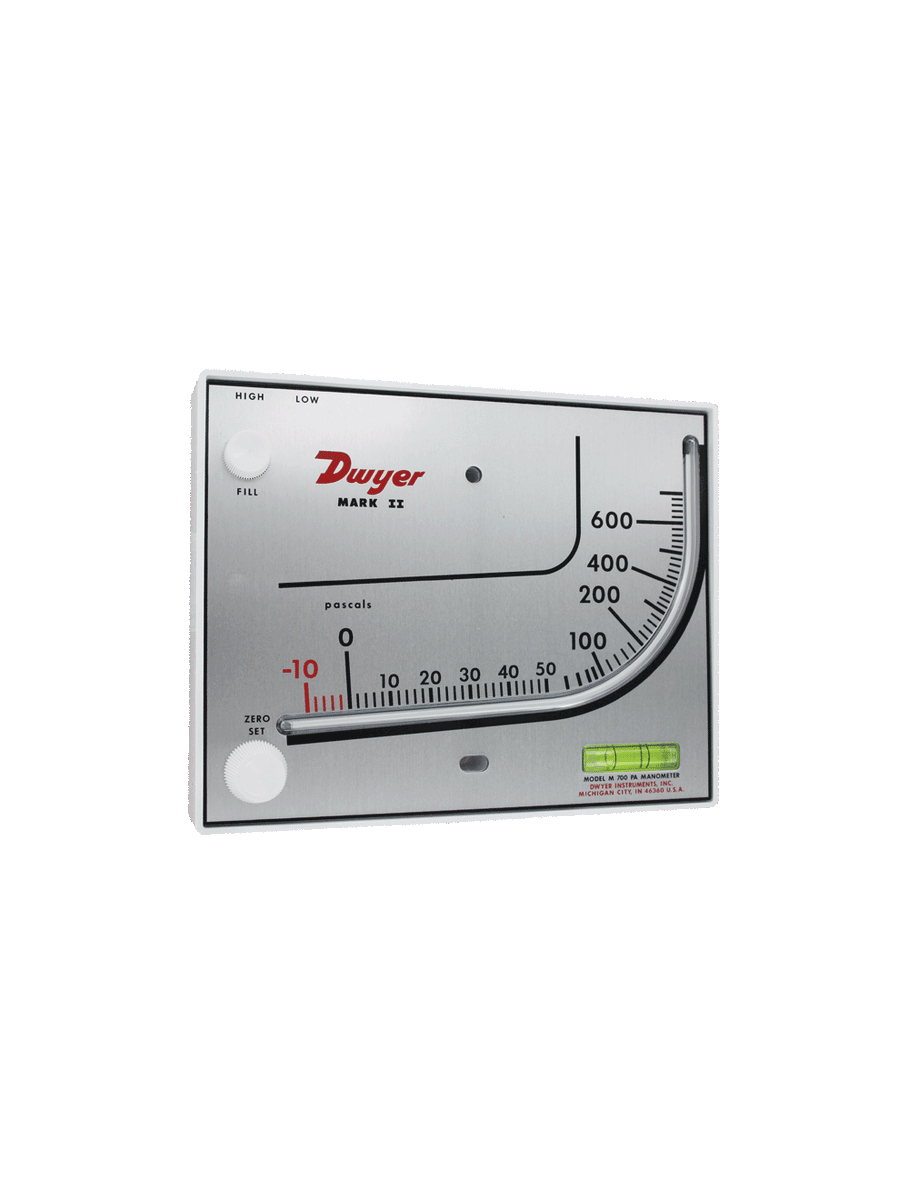

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MARK II-25

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MARK II-25 Documents

Inclined/Vertical Inclined Series Mark II Catalog Page Blue Gage Fluid - English Red Gage Fluid - English Blue Gage Fluid - French Blue Gage Fluid - Spanish Red Gage Fluid - French Red Gage Fluid - Spanish Blue Gage Fluid - German Red Gage Fluid - German Mark II More Info

Overview

Details for MARK II-25

Dwyer Instruments NCO Mark II-25 Plastic Manometer: Precision and Durability for Industrial Measurements The Dwyer Instruments NCO Mark II-25 is a precision-engineered plastic manometer designed to provide accurate pressure measurements in industrial settings. Its 0/3"WC measurement range makes it ideal for applications where low pressures need to be monitored with high accuracy. Constructed from durable plastic, the NCO Mark II-25 is built to withstand the rigors of industrial environments. Its compact design enables easy installation in tight spaces. The included mounting bracket allows for versatile placement options. The NCO Mark II-25 features a high-contrast scale with clear markings, ensuring precise readings. Its adjustable zero point allows for quick and convenient calibration. The manometer's threaded connections enable secure and leak-free attachment to pressure sources. Benefits: * Accurate pressure measurements with a 0/3"WC range * Durable plastic construction for longevity in industrial settings * Compact design for effortless installation in confined spaces * Adjustable zero point for hassle-free calibration * Threaded connections for secure and leak-proof attachment Applications: * Monitoring air flow and pressure in HVAC systems * Measuring pressure in gas lines and compressed air systems * Verifying vacuum levels in industrial processes Trust the Dwyer Instruments NCO Mark II-25 Plastic Manometer for reliable and precise pressure measurements in your industrial operations. Our HVAC supply store offers the best prices and fast shipping on all your instrument needs!

SERIES MARK II MOLDED PLASTIC MANOMETERS

3% Accuracy for Stationary and Portable Applications

Series Mark II Molded Manometers are of the inclined and inclined-vertical types. The curved inclined-vertical tube of the Model 25 gage provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work. The Model 40 inclined gage provides linear calibration and excellent resolution throughout its range. The Model 40 is ideally suited for air velocity and air filter gage applications. Both gage types are capable of pressure measurements above and below atmospheric as well as differential pressure measurements. Included with each Mark II manometer are two tubing connectors for 1/8" pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
The Model 25 also includes 8' of flexible double column plastic tubing. Portable operation of the Model 25 is made possible by the use of the optional A-612 portable stand. A short piece of tubing can be slipped over the Model 25 pressure connections to contain the gage fluid in transit.
The Model 40 contains two 4-1/2' lengths of clear plastic tubing, a plastic swing-out stand and leveling screw for portable operation. It also features convenient rapid shutoff pressure connections and integral overpressure safety traps.

Click here, if you require a Safety Data Sheet for the Blue Gage Fluid or the Red Gage Fluid.

Product Applications

Paint booths
Air velocity measurement
Air filter gage

Broad ranging in easy to read calibrated increments
Gages ideally suited for general measurements and specific air applications
Compact, stationary or portable device, make it a simple to use tool for pressuremeasurement in OEM or user applications

Specifications

Series: MARK II MOLDED PLASTIC MANOMETERS
Category/Type: Pressure
Type: Manometers
Series: MARK II MOLDED PLASTIC MANOMETERS
: INCLINED/VERTICAL
Accuracy: ±3% FS.
Temperature Limits: 140°F (60°C).
Pressure Limits: 10 psi (70 kPa).
Weight: 1.04 lb (472 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: INCLINED
Accuracy: ±3% FS.
Temperature Limits: 150°F (65°C).
Pressure Limits: 15 psi (100 kPa).
Scale Length: Approx. 8-1/4" (21 cm).
Weight: 1.23 lb (558 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
