M3FB25LX/A | 0 to 10V, 1"Valve, Hot Gas Bypass, 9.3 Cv, 460 PSI | Siemens Building Technology

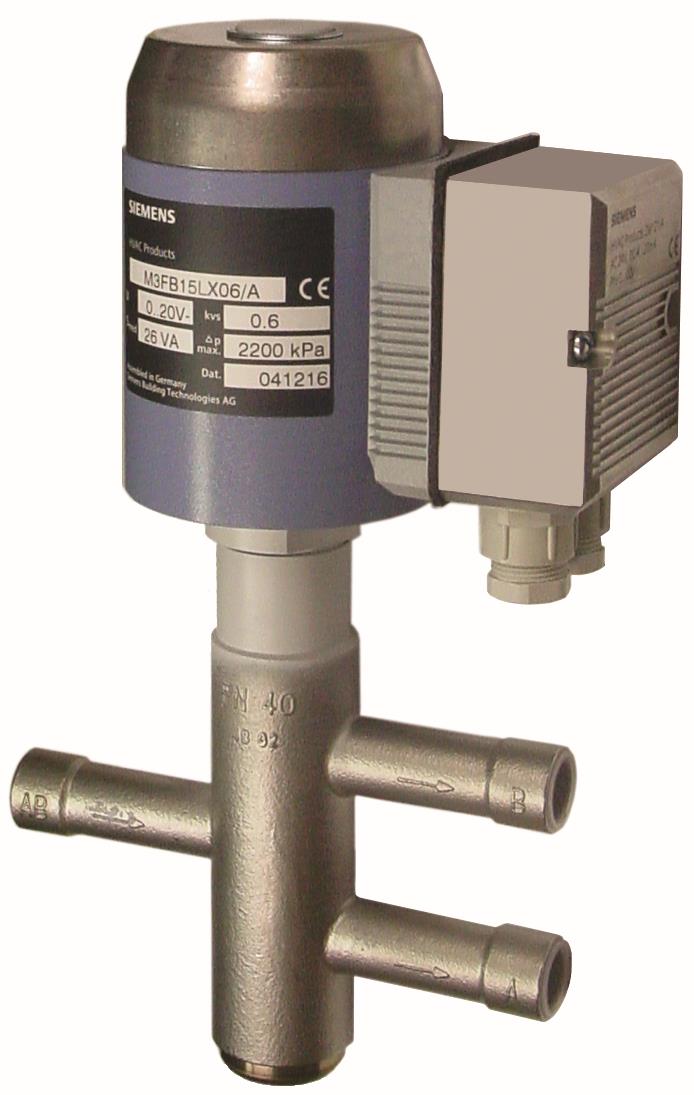

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB25LX/A
Documents and manuals
Siemens Building Technology M3FB25LX/A Documents
Datasheet(Modulating refrigerant valves‚ PS43. M3FB..LX..)Datasheet(M3FB…LX… Series Modulating Control Valve for Hot Gas Control Technical Instructions)Declaration of conformity(CE declaration M3FB..)Declaration of conformity(Test report EN 10204 (type 2.2). M3FB..LX..)Declaration of conformity(UKCA Conformity Declaration Electromagnetic valve actuators M3FB..)Mounting instruction(Modulating refrigerant valves with magnetic actuator‚ PS43. M3FB..LX..) More Info
Overview
Details for M3FB25LX/A
1" HOT GAS BYPASS VALVE (M3FB25LX/A)
Siemens Building Technology's M3FB25LX/A 1" Hot Gas Bypass Valve is designed to provide reliable and efficient bypass control in refrigeration and air conditioning systems. Featuring a robust construction and precision engineering, this valve ensures optimal system performance and longevity.
Key Features:
* 1" nominal size for handling refrigerant flow rates
* Durable construction for withstanding high-pressure applications
* Precision-machined components for leak-free operation
* Adjustable settings to optimize bypass flow
Benefits:
* Maintains system efficiency and reduces energy consumption
* Protects compressors from damage caused by excessive head pressure
* Provides stable and precise bypass control
* Extends the life of refrigeration and air conditioning equipment
Applications:
* Refrigerant bypass control in refrigeration and air conditioning systems
* Condensers and evaporators
* Liquid line and suction line bypass
* Industrial and commercial refrigeration systems
Shop our HVAC supply store for the Best Prices and Fast Shipping on Industrial Supplies
Specifications
- Power consumption
- 40 VA
- Stroke resolution ΔH/H100
- 1:200
- Material, valve body
- Steel
- Ambient temperature, operation
- -40…50 °C
- Degree of protection
- IP54
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- Steel
- Medium temperature
- -40…120 °C; -40…248 ºF
- Mounting position
- Any
- Nominal pressure
- PN 32
- Operating voltage
- 24 VAC
- Permissible operating pressure
- 4300 kPa
- Positioning signal
- DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 1 s
- Spring return function
- AB-> A closed
- Valve characteristic
- Linear
- Δpmax
- 1200 kPa
- Dimensions (W x H x D)
- 7.87 x 14.02 x 3.94 in
- kvs
- 8 m³/h
- DN
- 25
