LXD1G7 | D Contactor 120Vac 50/60 Coil | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LXD1G7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LXD1G7 Documents

Datasheet

Overview

Details for LXD1G7

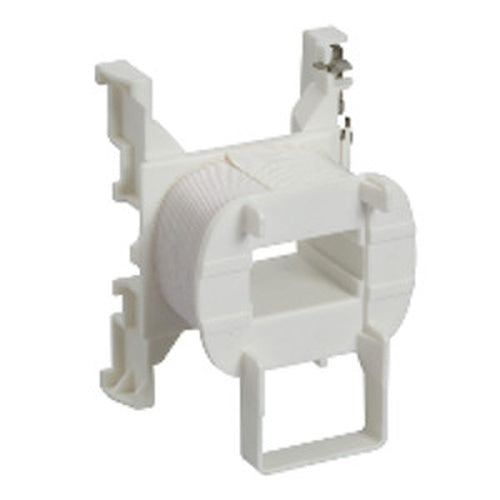

D Contactor 120Vac 50/60 Coil (LXD1G7) by Schneider Electric (Square D) The LXD1G7 contactor from Schneider Electric (Square D) is a reliable and efficient electromechanical device designed to control electrical circuits in demanding industrial applications. This contactor features a compact design, making it suitable for use in space-constrained environments. Its rugged construction ensures durability and long-lasting performance. Key Features: * 120Vac coil voltage * 50/60Hz coil frequency * Compact and robust design * Durable construction for demanding environments * Ideal for controlling electrical circuits in industrial applications With its dependable performance and compact design, the LXD1G7 contactor is an excellent choice for industrial engineers and maintenance professionals seeking a reliable and efficient contactor solution. Our HVAC supply store offers the best prices and fast shipping on all your industrial supply needs. Contact us today to learn more about the LXD1G7 contactor and our extensive inventory of electrical components.

Specifications

Range: TeSys
Product or component type: Contactor coil
device short name: LXD1
Control circuit type: AC at 50/60 Hz
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Average resistance: 150.6 Ohm at 20 °C
Inductance of closed circuit: 5.4 H
Product compatibility: LC1D09...D38
CAD
LC1DT20...DT40
Mechanical durability: 15 Mcycles
Maximum operating rate: 3600 cyc/h 60 °C
Coil technology: Without built-in suppressor module
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in VA: 70 VA 60 Hz cos phi 0.75 (at 20 °C)
70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA: 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation: 2…3 W at 50/60 Hz
Ambient air temperature for operation: -5…60 °C
Net weight: 0.07 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.000 cm
Package 1 Width: 6.300 cm
Package 1 Length: 4.500 cm
Package 1 Weight: 69.000 g
Unit Type of Package 2: S02
Number of Units in Package 2: 100
Package 2 Height: 15.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 7.412 kg
Warranty: 18 months
