LRD04 | IEC OVERLOAD RELAY .4-.63AMPS | Schneider Electric (Square D)

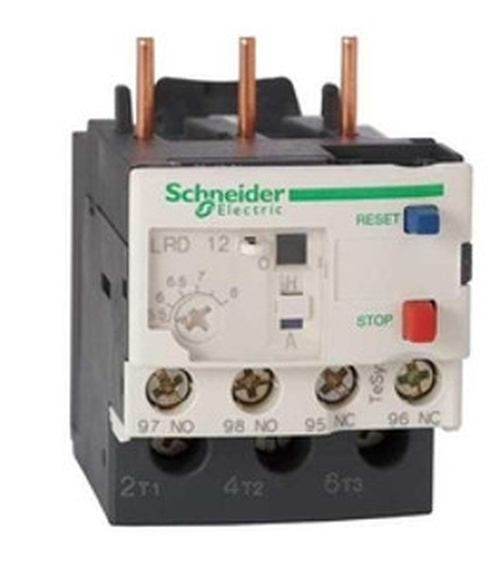

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRD04

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LRD04 Documents

More Info

Overview

Details for LRD04

IEC Overload Relay: Protection and Control LRD04 IEC Electromagnetic Overload Relay from Schneider Electric (Square D) provides precise protection against motor overload and phase failure, ensuring reliability and safety in industrial settings. Technical Specifications: â€¢ Current Range: 0.4-0.63 Amps â€¢ Compact Design: Ensures easy installation and space optimization â€¢ Monitoring and Diagnostic Capabilities: Helps anticipate and prevent system failures â€¢ Adjustable Trip Settings: Allows for customized protection levels â€¢ UL Listed: Complies with industry standards for safety and performance Benefits: â€¢ Protection from motor damage caused by overload and phase failure â€¢ Improved system reliability and efficiency â€¢ Easy installation and maintenance â€¢ Enhanced safety through precise tripping and monitoring â€¢ Peace of mind with UL listing Applications: â€¢ Industrial motors and electrical systems â€¢ Manufacturing and processing equipment â€¢ Conveyors and material handling systems â€¢ HVAC and refrigeration systems Our HVAC supply store: Your Source for Industrial Solutions Our HVAC supply store offers the best prices and fast shipping on the LRD04 IEC Overload Relay. Contact us today to experience the difference and get the protection your industrial equipment deserves! TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 0.4 to 0.63 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

range: TeSys;TeSys Deca
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LRD
relay application: Motor protection
Product Compatibility: LC1D25;LC1D38;LC1D32;LC1D18;LC1D12;LC1D09
network type: AC;DC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 0.4…0.63 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 3 A 120 V AC-15 signalling circuit;0.22 A 125 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.76 in (70 mm)
Net Weight: 0.27 lb(US) (0.124 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;UL;CSA;CCC;EAC;BV;RINA;DNV-GL;LROS (Lloyds register of shipping);ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110346749
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.93 in (4.9 cm)
Package 1 Width: 3.03 in (7.7 cm)
Package 1 Length: 3.46 in (8.8 cm)
Package 1 Weight: 4.83 oz (137 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 7.98 lb(US) (3.62 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 154.16 lb(US) (69.924 kg)
Warranty: 18 months
