LR9D5569 | TeSys LRD thermal overload relays - 90...150 A - class 20 | Schneider Electric (Square D)

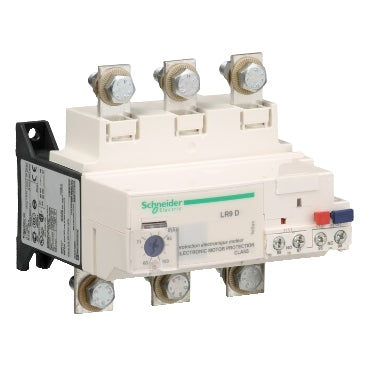

Schneider Electric (Square D) LR9D5569 Overload Relay: Protection for Industrial Systems The Schneider Electric (Square D) LR9D5569 Overload Relay safeguards electrical circuits from potential damage caused by overloads and short circuits. Designed for industrial applications, this relay provides reliable protection for motors, transformers, and other critical equipment. Key Features: Compact design ensures easy installation and space efficiency Adjustable trip settings allow customization to specific circuit requirements Manual and automatic reset options enhance flexibility and convenience UL and CSA certified for compliance and safety assurance Applications: Motor protection in commercial and industrial settings Transformer protection in power distribution systems Protection of other sensitive electrical components against overloads and short circuits our HVAC supply store offers competitive prices and expedited shipping for the Schneider Electric (Square D) LR9D5569 Overload Relay. Trust us to provide the best solutions for your electrical protection needs! LR9D5569 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 90-150A, a tripping class 20 and phase unbalance protection, it protects motors 55 to 75kW@400V. LR9D5569 is a TeSys LR9D electronic overload relay from Schneider Electric to be combined with a TeSys D contactor. With a thermal setting range 90-150A, a tripping class 20 and phase unbalance detection, it protects motors 55 to 75kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). To be combined with Tesys LC1D115-D150 contactors. Light and compact, 120mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay.
