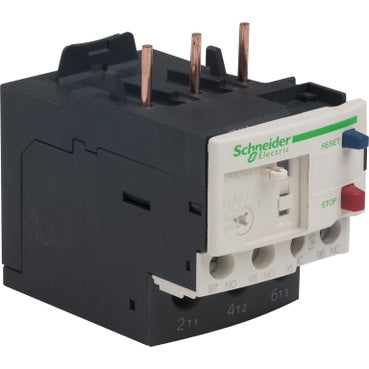

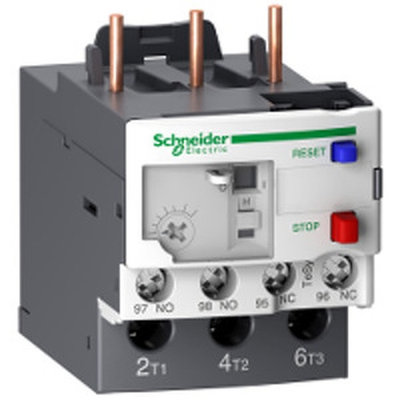

LR3D12L | TeSys LRD Thermal Overload Relays - 5.5...8 A - Class 20 | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LR3D12L

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LR3D12L Documents

More Info

Overview

Details for LR3D12L

Schneider Electric (Square D) NCO LR3D12L: Robust Overload Relay for Industrial Applications The NCO LR3D12L from Schneider Electric (Square D) is a class 20 overload relay designed to protect motors from electrical faults and overloads. With a current rating of 5.5 to 8A, this relay is ideal for various industrial applications. Its robust construction ensures reliable operation in demanding environments. Key Features and Benefits: - Protects motors against overloads and electrical faults - Class 20 rating for reliable protection - Current range of 5.5 to 8A for diverse applications - Easy to install and maintain - Compact design saves space in electrical panels Applications: - Ideal for protecting motors in industrial settings - Suitable for use in pumps, fans, conveyors, and other motor-driven equipment - Designed for applications requiring reliable overload protection Trust our HVAC supply store for Your Industrial Needs our HVAC supply store is your trusted source for a wide range of industrial supplies and equipment. We offer competitive prices and fast shipping to ensure that you can get the components you need, when you need them. Contact us today to learn more about our products and services. LR3D12L is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 3kW@400V thanks to a thermal range 5.5-8A , a tripping class 20, for use with unbalanced loads. LR3D12L is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 5.5-8A and tripping class 20, it protects unbalanced loads and motors 3kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Specifications

range: TeSys
product name: TeSys LRD;TeSys Deca
Product or Component Type: Non differential thermal overload relay
device short name: LR3D
relay application: Motor protection
Product Compatibility: LC1D25;LC1D09;LC1D12;LC1D38;LC1D18;LC1D32
network type: DC;AC
thermal overload class: Class 20 IEC 60947-4-1
thermal protection adjustment range: 5.5…8 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 3 A 120 V AC-15 signalling circuit;0.22 A 125 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.99 in (76 mm)
Net Weight: 0.32 lb(US) (0.144 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
mechanical robustness: Shocks15 Gn for 11 ms IEC 60068-2-7;Vibrations3 GN IEC 60068-2-6
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;EN 50495
Product Certifications: IEC;UL;CSA;EAC;ABS;ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3606480609701
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.27 in (8.3 cm)
Package 1 Width: 2.83 in (7.2 cm)
Package 1 Length: 1.77 in (4.5 cm)
Package 1 Weight: 6.14 oz (174.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 10.55 lb(US) (4.787 kg)
Unit Type of Package 3: P12
Number of Units in Package 3: 768
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 47.24 in (120 cm)
Package 3 Weight: 348.33 lb(US) (158 kg)
Warranty: 18 months
