LR3D08 | TESYs LRD THERMAL OVERLOAD RELAYS - 2.5...4 A, CLASS 10A | Schneider Electric (Square D)

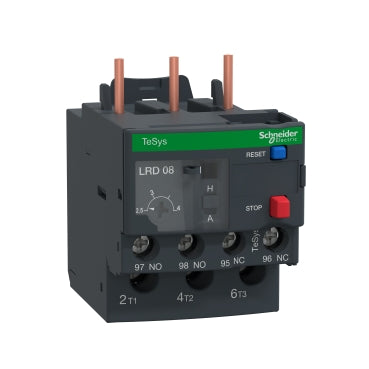

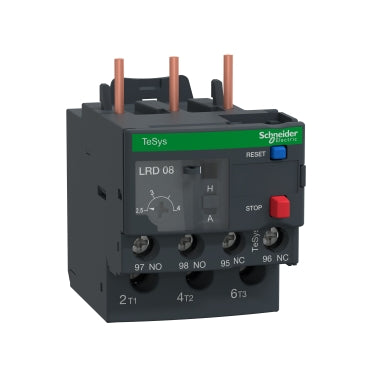

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LR3D08

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LR3D08 Documents

More Info

Overview

Details for LR3D08

Schneider Electric (Square D) LR3D08 Overload Relay: Protection for Electrical SystemsThe Schneider Electric (Square D) LR3D08 Overload Relay is a crucial component for safeguarding electrical systems from damage caused by overcurrent conditions. With its advanced technology, it provides reliable and efficient protection for a wide range of industrial applications. Designed to operate within a current range of 2.5-4A, the LR3D08 effectively detects and interrupts excessive current flow, preventing potential equipment failures or electrical hazards. Its robust construction ensures long-lasting performance and durability in demanding industrial environments. The LR3D08 Overload Relay is part of Square D's trusted range of electrical products, known for their high quality and dependability. It is meticulously designed to meet industry standards and provides peace of mind for engineers and maintenance professionals responsible for ensuring the safety and reliability of electrical systems. Shop at our HVAC supply store today for the best prices and fast shipping on the Schneider Electric (Square D) LR3D08 Overload Relay. We are your trusted source for industrial electrical supplies, offering a comprehensive range of products to meet your every need. LR3D08 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 1.1-1.5kW@400V thanks to a thermal range 2.5-4A , a tripping class 10A, for use with unbalanced loads. LR3D08 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 2.5-4A and tripping class 10A, it protects unbalanced loads and motors 1.1-1.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Specifications

range: TeSys;TeSys Deca
product name: TeSys LRD;TeSys Deca
Product or Component Type: Non differential thermal overload relay
device short name: LR3D
relay application: Motor protection
Product Compatibility: LC1D38;LC1D09;LC1D32;LC1D25;LC1D18;LC1D12
network type: DC;AC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 2.5…4 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 3 A 120 V AC-15 signalling circuit;0.22 A 125 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.76 in (70 mm)
Net Weight: 0.27 lb(US) (0.124 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;UL;CSA;CCC;EAC;BV;RINA;DNV-GL;LROS (Lloyds register of shipping);ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110346947
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 3.03 in (7.7 cm)
Package 1 Length: 3.46 in (8.8 cm)
Package 1 Weight: 4.97 oz (141 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 8.16 lb(US) (3.701 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 150.77 lb(US) (68.388 kg)
Warranty: 18 months
