LR2D3555 | BIMETALLIC OVERLD RELAY 575VAC | Schneider Electric (Square D)

Schneider Electric (Square D) | LR2D3555

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LR2D3555

Jump to: Overview Specifications Reviews

Overview

Details for LR2D3555

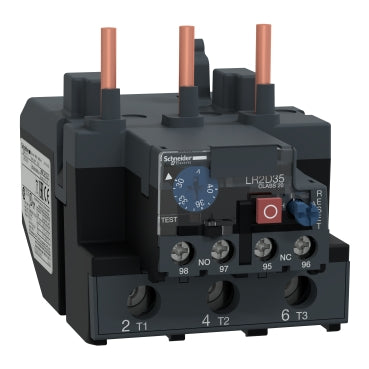

Schneider Electric (Square D) LR2D3555 Overload Relay The Schneider Electric (Square D) LR2D3555 is a 30/40A Class 20 Overload Relay designed to provide reliable protection for electric motors in industrial applications. Engineered with precision, this relay offers accurate overload and phase-failure detection, safeguarding your motors from potential damage. Built to industry standards, the LR2D3555 operates on a wide voltage range, ensuring compatibility with various electrical systems. Its compact design allows for easy installation, saving space in crowded control panels. The rugged construction ensures durability and longevity even in demanding environments. Features: * Class 20 overload protection for motors up to 40A * Phase failure detection for added safety * Wide voltage range for operational flexibility * Compact design for space-saving installation * Meets industry standards for reliability and performance Applications: * Motor protection in industrial machinery * Commercial and residential electrical systems * HVAC systems * Conveyor systems Enhance the safety and longevity of your industrial equipment with the Schneider Electric (Square D) LR2D3555 Overload Relay. Trust our HVAC supply store for the best prices and fast shipping on all your electrical components! LR2D3355 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 18.5kW@400V thanks to a thermal range 30-40A, a tripping class 20 and phase unbalance protection. LR2D3355 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 30-40A, a tripping class 20 and phase unbalance detection, it protects motors 18.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D80 and D95 to form a compact starter. Light and compact, 70mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Specifications

range: TeSys
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LR2D
relay application: Motor protection
Product Compatibility: LC1D95;LC1D80
network type: DC;AC
thermal overload class: Class 20 IEC 60947-4-1
thermal protection adjustment range: 30…40 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 0.72 A 500 V AC-15 signalling circuit;0.06 A 440 V DC-13 signalling circuit
[Ue] rated operational voltage: 1000 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Power circuit screw clamp terminals 1 0.01…0.05 in² (4…35 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.01…0.05 in² (4…35 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.01…0.05 in² (4…35 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 79.66 lbf.in (9 N.m) screw clamp terminals
Height: 3.94 in (100 mm)
Width: 2.95 in (75 mm)
Depth: 4.76 in (121 mm)
Net Weight: 1.18 lb(US) (0.535 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 2.2 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1
Product Certifications: IEC;UL;CSA;EAC;BV;DNV-GL;LROS (Lloyds register of shipping)
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110229097
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.35 in (8.5 cm)
Package 1 Width: 3.07 in (7.8 cm)
Package 1 Length: 4.65 in (11.8 cm)
Package 1 Weight: 18.27 oz (518.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 12
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.39 lb(US) (6.527 kg)
Warranty: 18 months
