LPG5-D8042N | 2.5" low pressure gage | dual range 0-10" w.c.(0-2.5 kPa) | back connection | Dwyer Instruments

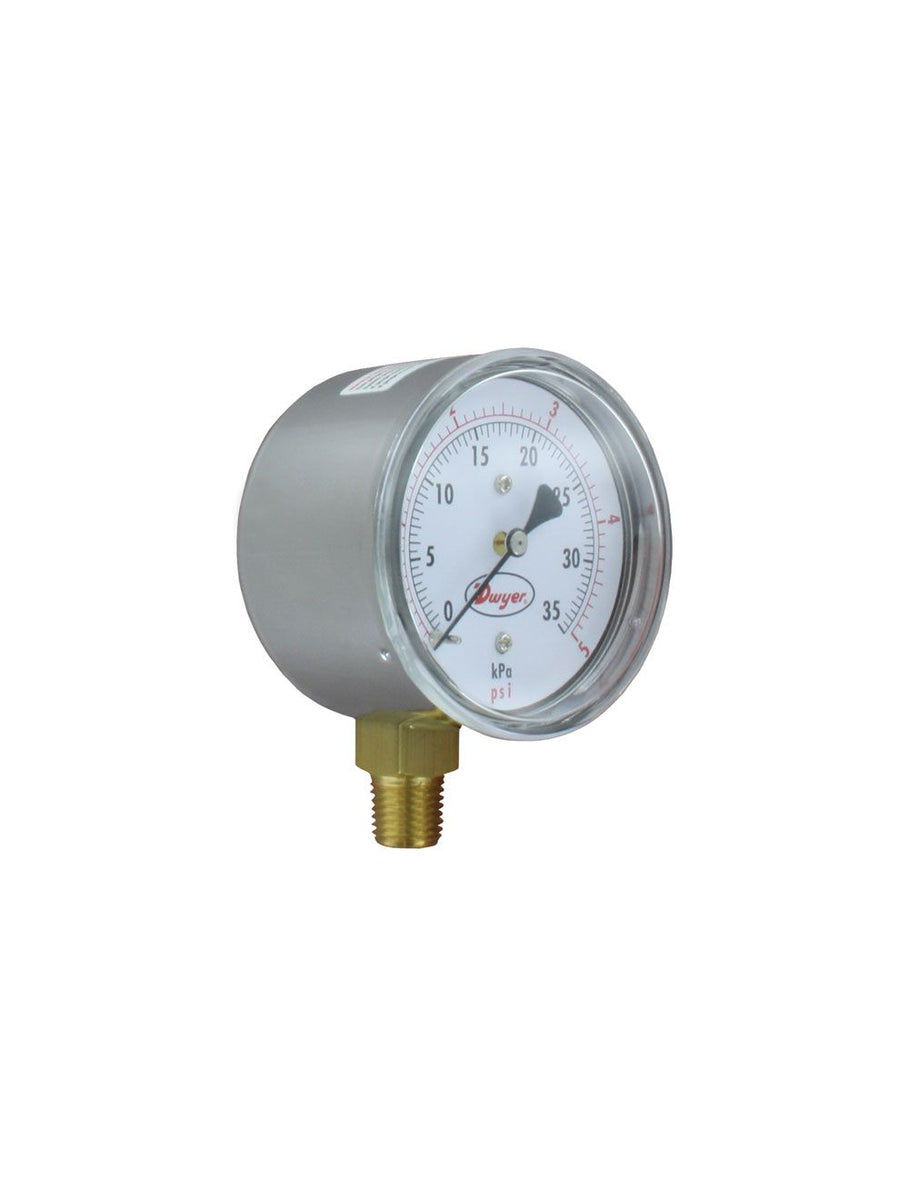

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LPG5-D8042N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments LPG5-D8042N Documents

Series LPG5 Catalog Page More Info

Overview

Details for LPG5-D8042N

The Dwyer Instruments LPG5-D8042N is a 2.5" press gauge designed to measure pressure from 0 to 10" WC/KPA. It features a durable construction with a brass case and stainless steel internals, ensuring longevity and accuracy in harsh industrial environments. The gauge's large, easy-to-read dial with both psi and kPa units provides precise readings for various applications.

SERIES LPG5 2.5" LOW PRESSURE GAGE

3-2-3% Full Scale Accuracy in a 2.5" Gage

The Series LPG5 Low Pressure Gages offer top of the line performancefor pressure applications from 10 in. w.c. to 10 psi. The LPG5 gages possessdual scales with 3-2-3% full-scale accuracy on a 2.5" dial. Units are made with achrome plated steel housing and brass wetted parts. Units can withstandtemperatures of -4 to 140°F (-20 to 60°C). This series is meant for themeasurement of low pressures of gases and liquids and is ideal for air flowindication, liquid level and draft measurement. Series LPG5 gages are availablewith either a bottom or back connection option.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air flow indication
Liquid level
Draft measurement

Chrome plated steel housing and brass wetted parts resist ambient for longer servicelife in harsh environments
Low pressure gage provides a selection to meet specific applications
Specified with high ambient and process temperature ratings mean more robustuses and longer service-life
Good accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
