LPG4-D8122N | Low pressure gage | range 0-15" w.c. (0-3.75 kPa). | Dwyer Instruments

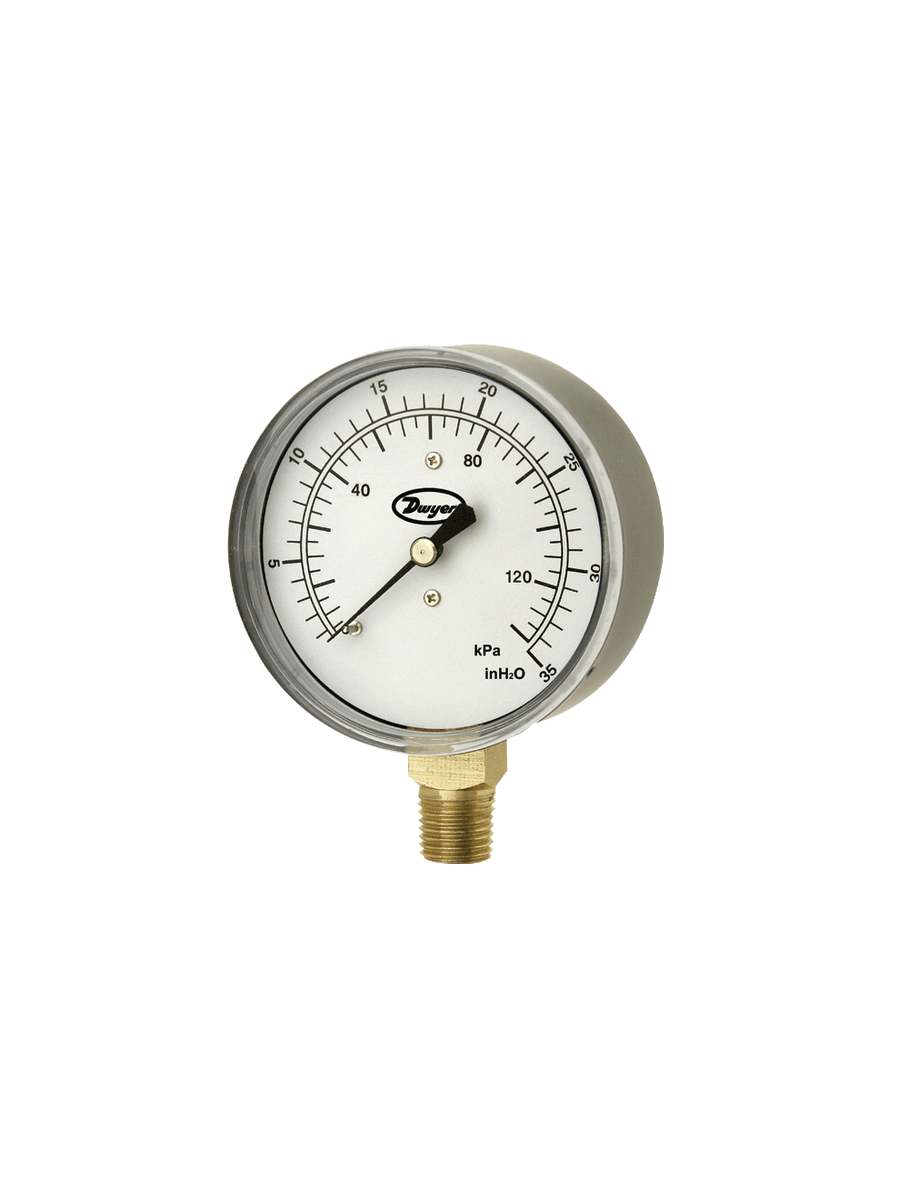

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LPG4-D8122N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments LPG4-D8122N Documents

Series LPG4 Catalog Page More Info

Overview

Details for LPG4-D8122N

LPG4 Dwyer Magnehelic Pressure Gage: Accurate and Durable MeasurementThe Dwyer Instruments LPG4-D8122N is a high-quality Magnehelic pressure gage designed for measuring low-pressure ranges in various industrial and HVAC applications. This gage features a rugged construction and reliable performance, ensuring accurate readings in demanding environments. Key Features: - Measures positive, negative, or differential pressures ranging from 0-15" WC - Easy-to-read 4.5" dial with a clear scale for precise measurements - Durable brass construction for corrosion resistance and long-lasting operation - Bottom mount connection for versatile installation options - Meets ASME B40.100 Grade B accuracy standards for reliable measurements Benefits: - Provides accurate and real-time pressure readings for optimizing system performance - Helps diagnose and troubleshoot system issues by monitoring pressure levels - Enhances safety by indicating potential pressure problems - Contributes to efficient system operation by providing data for adjustments and maintenance Applications: - Ideal for measuring pressure in HVAC systems, such as ductwork, air handlers, and filters - Suitable for monitoring pressure in industrial processes, including gas lines, vacuum systems, and compressed air systems - Can be used in environmental monitoring, cleanroom testing, and laboratory applications Shop now at our HVAC supply store for the best prices and fast shipping on your LPG4-D8122N pressure gage. Our knowledgeable staff is ready to assist you with any technical questions or product recommendations. Upgrade your pressure measurement capabilities today and experience the precision and reliability of Dwyer Instruments.

SERIES LPG4 2.5" LOW PRESSURE GAGE

1.5% Full Scale Accuracy in a 2.5" Gage

Our Series LPG4 2.5" Low Pressure Gage offers top of the line performance and accuracy for pressure and vacuum applications up to and including 160 in w.c. The LPG4 is constructed from a single beryllium-copper diaphragm affixed to a precision-machined brass plate. This innovative design, together with a high-precision, milled-teeth brass movement and nickel-silver pinion and bearing surface, provide the user with a top of the line low pressure instrument.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air flow indication
Liquid level
Draft measurement

Low pressure gage provides a selection to meet specific applications
Specified with high ambient and process temperature ratings mean more robustuses and longer service-life
High accuracy gage for applications requiring more precise measurement is aconcern

Specifications

Series: LPG4 2.5" LOW PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: LPG4 2.5" LOW PRESSURE GAGE
Service: Compatible gases & liquids.
Wetted Materials: Brass and beryllium copper.
Housing: Drawn steel; black finish.
Lens: Polycarbonate (removable).
Accuracy: ±1.5% FS.
Pressure Limit: 100% of range scale.
Temperature Limits: Process: -40 to 160°F (-40 to 70°C); Ambient: -40 to 140°F (-40 to 60°C).
Size: 2.5" (63 mm)
Process Connections: 1/4" male NPT.
Enclosure Rating: NEMA 3 (IP54).
Weight: 7.3 oz (0.21 kg).
