LLC-118 | Conductivity controller | 120 VAC | 10K ohm sensitivity | 8-pin octal socket style. | Dwyer Instruments

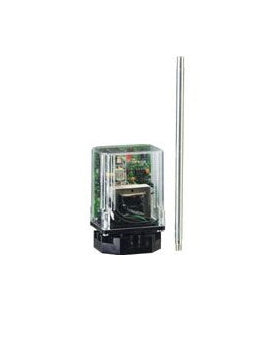

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LLC-118

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments LLC-118 Documents

LLC Series LLC Catalog Page More Info

Overview

Details for LLC-118

Conductivity Controller: LLC-118 Dwyer InstrumentsLLC-118 Conductivity Controller from Dwyer Instruments is designed to measure and control conductivity in various industrial applications. Compact and Durable: The LLC-118 features a compact design with a durable NEMA 4X enclosure, making it suitable for harsh and demanding environments. Wide Conductivity Range: It has a wide conductivity range of 0-10,000 ÂµS/cm, allowing it to measure a variety of liquids with different levels of conductivity. Easy Operation: The controller offers simple and intuitive operation with a user-friendly LCD display and push-button controls for easy setup and monitoring. Versatile and Reliable: The LLC-118 can be configured for various control modes, including proportional, integral, and derivative (PID) control, making it suitable for a wide range of applications. Its high accuracy and reliability ensure precise and dependable control of conductivity levels. Applications: Water Treatment: Monitoring and controlling conductivity in water purification systems, desalination plants, and wastewater treatment facilities. Chemical Processing: Measuring and regulating conductivity in chemical manufacturing processes, ensuring product quality and consistency. Power Generation: Monitoring and maintaining conductivity levels in cooling water systems of power plants. Food and Beverage: Controlling conductivity in food processing and beverage production to ensure product safety and quality. Our HVAC supply store: Your Trusted Source for Industrial Equipment Our HVAC supply store is your trusted source for industrial equipment and supplies. We offer competitive prices, fast shipping, and exceptional customer service. Choose Our HVAC supply store for all your industrial needs and experience the best in product quality, service, and value. Shop now!

Series LLC Conductivity Controller

Single Point or Differential Level Service, Compact Size, Up to 6 ft. (1.82 m) Probes

Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller. Select the required number of probes for single or dual point level detection. Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements. The LLC features rugged 1/4-inch (6.3 mm) diameter, stainless steel probes, LED monitoring, surge protection, low voltage sensor and different mounting options.

TO BUILD YOUR LEVEL SWITCH:
Controller:
1. Determine your supply voltage. Select between 120 and 240 VAC.
2. Determine the required sensitivity. Select between 10K Ω and 26K Ω.
3. Determine the socket style. Select between 8-pin octal and DIN mount.
Probes:
4. Determine the required number of probes. Specify quantity of Threaded Mounting Couplings, model LLC-82. (A coupling is required for each probe.)
5. Select probe lengths. Specify model numbers for probes.

Specifications

Series: LLC Conductivity Controller
Category/Type: Level
Type: Level Switches
Series: LLC Conductivity Controller
Service: Electrically conductive fluids.
Wetted Materials: 316 stainless steel; PTFE.
Temperature Limits: Controller: -40 to 150°F (-40 to 65°C); Probes: 406°F (207°C).
Pressure Limits: Probes: 400 psig ( 27 bar).
Accuracy: ±0.25% FS.
Switch Type: SPDT; N.O. or N.C.
Electrical Rating: 10 Amps resistive; 1/3 hp @ 120/240 VAC.
Power Requirements: 120 VAC or 240 VAC.
Electrodes: 1/4" (6.3 mm) diameter; 316 SS.
Maximum Probe Length: 72 Inches (1.82 m).
Controller Sensitivity: 10K Ω or 26K Ω.
Mounting: Controller: 8 pin octal or DIN mount; Probes: 3/8" Male NPT.
Weight: Controller: 6 oz (170 g).
