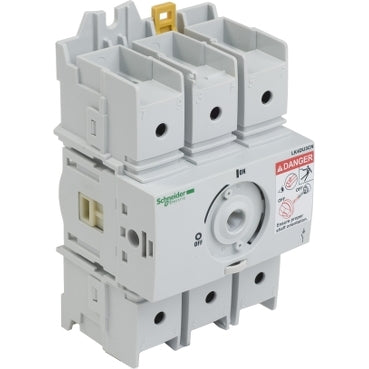

LK4DU3CN | Disconnect Switch No Fuse 600V 30A 3P | Schneider Electric (Square D)
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LK4DU3CN
Documents and manuals
Schneider Electric (Square D) LK4DU3CN Documents
Overview
Details for LK4DU3CN
LK4DU3CN Disconnect Switch: Reliable Control for Industrial Applications
Schneider Electric (Square D)'s LK4DU3CN Disconnect Switch provides reliable control over electrical circuits in industrial environments. This robust switch is engineered to handle high current loads, making it suitable for a wide range of applications including motor control, power distribution, and isolation.
Its durable construction features a heavy-duty enclosure that protects against dust, moisture, and other contaminants. The switch is also designed with clearly labeled terminals for easy wiring. Additionally, it features a positive action handle that provides clear indication of the switch's status.
Key Features:
* Rugged design for demanding industrial environments
* High current capacity for handling heavy loads
* Positive action handle for quick and reliable operation
* Clear terminal markings for ease of installation
* Compact size for space optimization
Applications:
* Motor control
* Power distribution
* Isolation
* Electrical safety
Our HVAC supply store offers the LK4DU3CN Disconnect Switch at the most competitive prices, backed by our commitment to fast shipping and excellent customer service. Order now to enhance the safety and efficiency of your industrial electrical systems!
Specifications
- range
- TeSys
- product name
- TeSys LK
- Product or Component Type
- Disconnect Switch
- disconnector device type
- Non-fusible disconnect switch
- suitability for isolation
- Yes
- poles description
- 3P
- network type
- AC
- Network Frequency
- 50/60 Hz
- [Ie] rated operational current
- 32 A400 V AC AC-22A IEC;32 A400 V AC AC-23A IEC;32 A690 V AC AC-22A IEC;32 A690 V AC AC-23A IEC;30 A CSA;30 A UL
- [Ue] rated operational voltage
- 600 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage
- 690 V
- Control Type
- Rotary handle
- type of operating handle
- External frontal;External right side
- Mounting Support
- Plate
- [Uimp] rated impulse withstand voltage
- 8 kV IEC
- rated power in W
- 15 kW 400 V;18.5 kW 500 V;25 kW 690 V
- rated power in hp
- 10 hp 240 V 30 A AC;20 hp 480 V 28 A AC;25 hp 600 V 28 A AC
- [Icw] rated short-time withstand current
- 5.5 kA
- mechanical durability
- 10000 cycles
- electrical durability
- 6000 cycles
- connections - terminals
- lugs-ring terminals 1 0.01 in² (4 mm²)
- Height
- 4.92 in (125 mm)
- Width
- 3.13 in (79.5 mm)
- Depth
- 2.52 in (64 mm)
- Standards
- UL98;IEC 60947-3;CSA C22.2 No 4
- Product Certifications
- CE;CSA;UL
- Category
- 22640-IEC DISCONNECT-GS1;LK3
- Discount Schedule
- I11
- GTIN
- 3606480510410
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.27 in (8.3 cm)
- Package 1 Width
- 3.54 in (9.0 cm)
- Package 1 Length
- 6.30 in (16.0 cm)
- Package 1 Weight
- 21.94 oz (622.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 18
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 25.91 lb(US) (11.754 kg)
- Warranty
- 18 months
Reviews
Recently Viewed
New Arrivals
R46930-001 | Ind Mtr Assy 1/20hp 208-230v | Armstrong Furnace
Brand: Armstrong Furnace
SKU: R46930-001

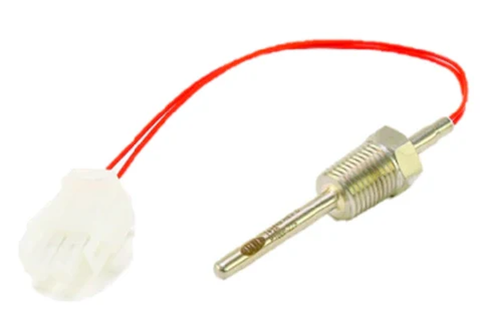

123449 | Exhaust Temperature Sensor | AERCO Boiler and Water Heater
