LFME-13-F2 | Polycarbonate flowmeter | range 2-20 GPM (8-80 LPM) water | 1" male NPT | 316 SS float. | Dwyer Instruments

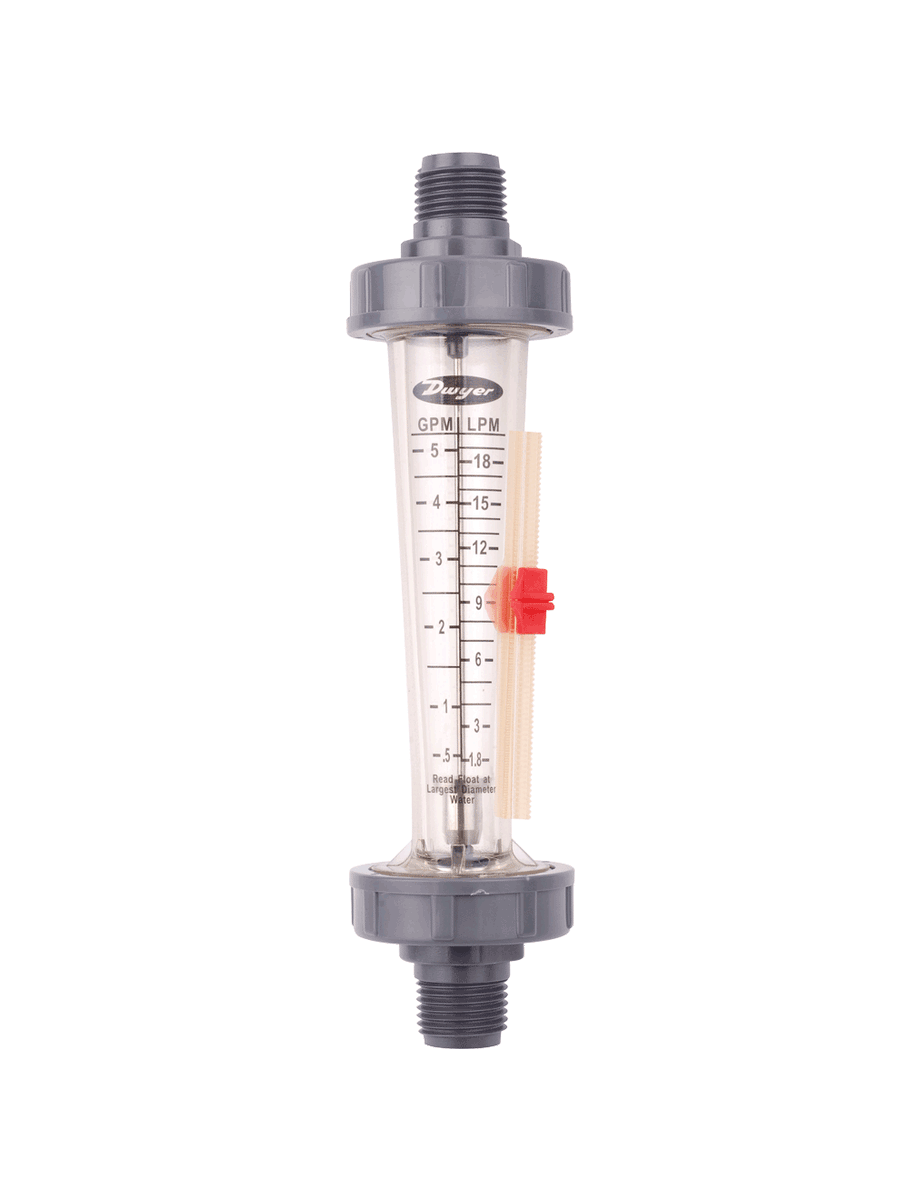

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LFME-13-F2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments LFME-13-F2 Documents

Instruction Manual Series LFM Catalog Page More Info

Overview

Details for LFME-13-F2

The LFME-13-F2 from Dwyer Instruments is a 2/20GPM 1" Flowmeter with a Stainless Steel Float. This versatile flowmeter is designed for measuring liquid flow rates in a wide range of industrial applications. Its durable construction and high accuracy make it a reliable choice for monitoring and controlling flow rates in various systems. Key Features: * Flow Rate Range: 2/20 GPM * Connection Size: 1" * Float Material: Stainless Steel * Accuracy: Â±2% of full scale * Rugged Construction: Ensures durability in demanding environments Applications: * Chemical Processing * Water Treatment * Food Processing * Pharmaceutical * Power Generation Shop our HVAC supply store for the best prices and fast shipping on all your industrial products. We offer a wide selection of flowmeters, including the Dwyer Instruments LFME-13-F2, to meet your specific application needs.

Series LFM Polycarbonate Flowmeters

Chemically Resistant, In-Line or Panel Mount Options, Adjustable Set Point Indicator Option

The Series LFM Polycarbonate Flowmeters are made of precision, injection molded polycarbonate bodies and fittings. This series consists of LFMA, LFMB, LFMC, LFMD, LFME and LFMF flowmeters with 3" (76 mm), 6" (152 mm), 5" (127 mm), 6" (152 mm), 8" (203 mm) and 11" (279 mm) respective scales. They feature dual, direct reading scales measuring in both GPM and LPM.

CAUTION: Series LFM Flowmeters are for indoor use only or areas without direct sunlight. Polycarbonate is adversely affected by ultraviolet light.

Calibration Option is available in the Accessory tab.

Product Applications

Chill water flow
Reverse osmosis systems
Deionized water systems

Low installation costs with standard in-line male NPT process connections and 90° elbow fitting for panel mount option
Heat and chemically resistant polycarbonate body and fittings feature a low cost for high durability
Textured background on flowmeter bodies enhance scale readability saving time
Easy to clean bodies yield low maintenance costs
Adjustable set point indicator allows for easy visual set point indication decreasing costly flow reading error for LFMC, LFMD, LFME & LFMF

Specifications

Series: LFM Polycarbonate Flowmeters
Category/Type: Flow
Type: Flowmeters
Series: LFM Polycarbonate Flowmeters
Service: Water.
Wetted Materials: Body: Polycarbonate; Flange nut: ABS; Float stop: LFMA; LFMB; LFMC: ABS; LFMD; LFME; LFMF: Polypropylene; O-rings: Fluoroelastomer; Rod & float: 316 SS; Connections: 20 mm & 63 mm metric union fittings: ABS; 32 mm & 40 mm metric union fittings: PVC; 1/2" & 3/4" male NPT fittings for LFMA; LFMB; LFMC: ABS; 3/4" male and female NPT fittings for LFMD: PA66 nylon; 1" & 2" male NPT fittings: PA66 nylon.
Pressure Limit: 87 psi (6 bar) at 68°F (20°C); 90° elbow fittings 116 psi (8 bar) at 68°F (20°C).
Accuracy: ±5%.
Process Connection: LFMA: 1/2" male NPT. Optional 20 mm metric union; LFMB: 1/2" male NPT. Optional 20mm metric union or 1/2" male NPT with 90° elbow; LFMC: 1/2" male NPT. Optional 20 mm metric union; 3/4" male NPT; or 1/2" male NPT with 90° elbow; LFMD: 3/4" male NPT. Optional 32 mm metric union; 3/4" female NPT; or 3/4" male NPT with 90° elbow; LFME: 1" male NPT. Optional 40 mm metric union; 1" female NPT; or 1" male NPT with 90° elbow; LFMF: 2" male NPT. Optional 63 mm metric union or 2" female NPT.
Weight: LFMA: 2 oz (56.7 g); LFMB: 3 oz (85.0 g); LFMC: 4 oz (113.4 g); LFMD: 10oz (283.5 g); LFME: 15 oz (425.2 g); LFMF: 40 oz (1.1 kg).
: CAUTION: Series LFM Flowmeters are for indoor use only or areas without direct sunlight. Polycarbonate is adversely affected by ultraviolet light.
