LCT216-110 | Digital timer/tachometer/counter | relay output. | Dwyer Instruments

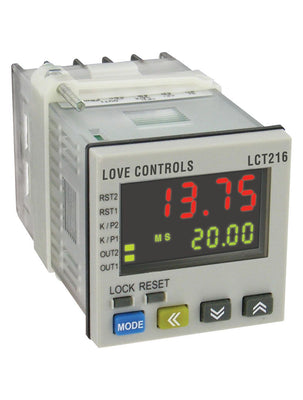

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LCT216-110
Documents and manuals
Dwyer Instruments LCT216-110 Documents
Overview
Details for LCT216-110
Dwyer Instrumentsâ„¢ LCT216-110 Digital Timer Relay Output
The LCT216-110 digital timer relay output from Dwyer Instrumentsâ„¢ provides precise and reliable timing control for industrial applications. Featuring a robust design and intuitive programming, this device offers a wide range of timing functions to meet diverse needs.
Key Features:
* LED display for clear time readings
* Multiple timing modes: On-delay, Off-delay, Interval, and Repeat cycle
* Adjustable time ranges from 0.01 seconds to 99 hours
* Compact and panel-mountable design for easy installation
* 120/240 VAC or 24 VDC power supply options
Applications:
* Process control
* Machine automation
* Sequencing operations
* Monitoring systems
Benefits:
* Enhanced accuracy and repeatability in timing applications
* Improved productivity by automating timing sequences
* Reduced maintenance costs through reliable operation
* Ergonomic design simplifies programming and monitoring
Our HVAC supply store offers the best prices and fast shipping. Choose Dwyer Instrumentsâ„¢ LCT216-110 for efficient and precise timing control in your industrial operations. Upgrade your systems today!
SERIES LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
3 Controls in 1 Device, DIP Switch Configuration
The Series LCT216 Digital Timer / Tachometer / Counter combines a versatile timer, counter, and tachometer in one device. The bright, easy-to-read display shows both the desired set point and the current process value as well as the operating mode that the control is functioning in. The fourteen pre-programmed timer functions are easy to set up and cover most applications. The counting functions include one stage or two-stage counting along with batch, total, or dual counting modes. The Series LCT216 can also be used as a tachometer to measure rotational speeds. For quick setup, many of the programming parameters can be set with external dip switches located on the side of the unit.
Product Applications
- Industrial ovens
- Batch counting in conveyor systems
- Silk screening equipment
- Fourteen pre-programmed timer functions
- One stage, two-stage, batch, total, and dual counting modes
Specifications
- Series
- LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
- Category/Type
- Process Control
- Type
- Timers
- Series
- LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
- Operating Temperature Ranges
- 32 to 122°F (0 to 50°C).
- Humidity Conditions
- 35 to 85% RH (non-condensing).
- Control Output Ratings
- (Out 1) Relay: SPST 5A at 250 VAC; Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max; (Out 2) Relay: SPST 5A at 250 VAC; Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max.
- Reset Time
- 0.001 s. minimum.
- Inputs
- Dry contact; PNP; or NPN.
- Timing Functions
- 14 pre-programmed timing functions.
- Power Requirements
- 100 to 240 VAC 50 / 60 Hz.
- Power Consumption
- Less than 10 VA.
- Internal Power Supply
- 12 VDC ±10%; 100 mA.
- Display
- Two-line 6 digit negative transmissive LCD display.
- Weight
- 4 oz (114 g).
- Agency Approvals
- CE; UL.
