LC1K0610G7 | TeSys K Contactor, 3-Poles (3 NO), 1 NO Aux. Contact, 6A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1K0610G7

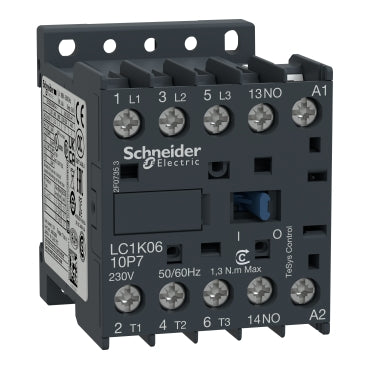

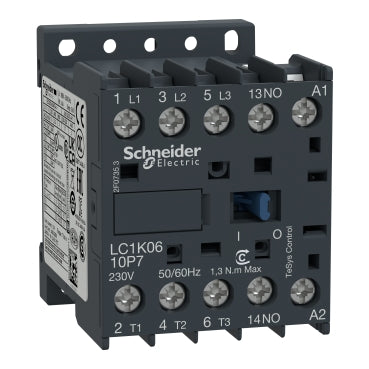

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1K0610G7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC1K0610G7 Documents

More Info

Overview

Details for LC1K0610G7

Schneider Electric (Square D) LC1K0610G7 3-Pole Contactor: Reliable and Efficient Industrial Control Solution The LC1K0610G7 contactor from Schneider Electric (Square D) provides exceptional performance and reliability in industrial control applications. Designed for 3-phase electrical systems, it offers a voltage rating of 440V and a current rating of 6A. The contactor's 1NO auxiliary contact and 120V coil voltage ensure compatibility with various control circuits. Key Features: â€¢ 3-pole design for controlling 3-phase circuits â€¢ 440V voltage rating for use in high-voltage applications â€¢ 6A current rating for handling moderate loads â€¢ 1NO auxiliary contact for additional control capabilities â€¢ 120V coil voltage for compatibility with common control systems Benefits: â€¢ Reliable performance and extended lifespan â€¢ Efficient switching of high-power electrical loads â€¢ Enhanced control versatility through auxiliary contact â€¢ Convenient installation and maintenance with easy-to-wire terminals â€¢ Compact size for space-saving in control panels Applications: The Schneider Electric (Square D) LC1K0610G7 3-pole contactor is widely used in industrial control systems, including: â€¢ Motor control â€¢ Lighting control â€¢ HVAC systems â€¢ Material handling â€¢ Process automation our HVAC supply store offers the best prices and fast shipping for the Schneider Electric (Square D) LC1K0610G7 3-pole contactor. Trust us for your industrial control needs! LC1K0610G7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 120V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0610G7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 120V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Specifications

range: TeSys
Product or Component Type: Contactor
product name: TeSys K
device short name: LC1K
Device Application: Control
contactor application: Motor control
utilisation category: AC-3;AC-4;AC-3e
poles description: 3P
power pole contact composition: 3 NO
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz;Signalling circuit <= 690 V AC 50/60 Hz
[Ie] rated operational current: 6 A<= 440 V AC AC-3 power circuit;6 A<= 440 V AC AC-3e power circuit
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 120 V AC 50/60 Hz
motor power kW: 1.5 kW 220...230 V AC 50/60 Hz AC-3;2.2 kW 380...415 V AC 50/60 Hz AC-3;3 kW 440 V AC 50/60 Hz AC-3;3 kW 480 V AC 50/60 Hz AC-3;3 kW 500...600 V AC 50/60 Hz AC-3;3 kW 660...690 V AC 50/60 Hz AC-3;1.5 kW 400 V AC 50/60 Hz AC-4;1.5 kW 220...230 V AC 50/60 Hz AC-3e;2.2 kW 380...415 V AC 50/60 Hz AC-3e;3 kW 440 V AC 50/60 Hz AC-3e;3 kW 480 V AC 50/60 Hz AC-3e;3 kW 500...600 V AC 50/60 Hz AC-3e;3 kW 660...690 V AC 50/60 Hz AC-3e
auxiliary contact composition: 1 NO
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit;10 A 122 °F (50 °C) signalling circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947;110 A AC signalling circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
[Icw] rated short-time withstand current: 90 A 122 °F (50 °C) - 1 s power circuit;85 A 122 °F (50 °C) - 5 s power circuit;80 A 122 °F (50 °C) - 10 s power circuit;60 A 122 °F (50 °C) - 30 s power circuit;45 A 122 °F (50 °C) - 1 min power circuit;40 A 122 °F (50 °C) - 3 min power circuit;20 A 122 °F (50 °C) - >= 15 min power circuit;80 A - 1 s signalling circuit;90 A - 500 ms signalling circuit;110 A - 100 ms signalling circuit
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit;10 A gG signalling circuit IEC 60947;10 A gG signalling circuit VDE 0660
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-5-1;Signalling circuit 600 V UL 508;Power circuit 600 V CSA C22.2 No 14;Signalling circuit 600 V CSA C22.2 No 14
insulation resistance: > 10 MOhm signalling circuit
inrush power in VA: 30 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.5 VA 68 °F (20 °C))
heat dissipation: 1.3 W
control circuit voltage limits: Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.2...0.75 Uc 122 °F (50 °C))
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
maximum operating rate: 3600 cyc/h
auxiliary contacts type: Instantaneous 1 NO
signalling circuit frequency: <= 400 Hz
minimum switching current: 5 mA signalling circuit
minimum switching voltage: 17 V signalling circuit
Mounting Support: Plate;Rail
tightening torque: 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
operating time: 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
non overlap distance: 0.02 in (0.5 mm)
mechanical durability: 10 Mcycles
electrical durability: 1.3 Mcycles 6 A AC-3 <= 440 V;1.3 Mcycles 6 A AC-3e <= 440 V
mechanical robustness: Shocks contactor closed;on X axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Y axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Z axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on X axis6 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Y axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Z axis10 Gn for 11 ms IEC 60068-2-27;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor opened2 Gn;5...300 Hz IEC 60068-2-6
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.40 lb(US) (0.18 kg)
standards: BS 5424;IEC 60947;NF C 63-110;VDE 0660
Product Certifications: CSA;UL;UKCA
IP degree of protection: IP2x VDE 0106
protective treatment: TC IEC 60068;TC DIN 50016
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
Category: 22326-CTR;K-LINE;AC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110346145
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.48 in (6.3 cm)
Package 1 Width: 1.89 in (4.8 cm)
Package 1 Length: 2.60 in (6.6 cm)
Package 1 Weight: 6.35 oz (180.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 20.84 lb(US) (9.455 kg)
Warranty: 18 months
