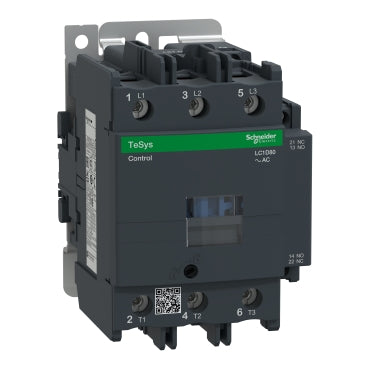

LC1D80T6 | TeSys D Contactor, 3-Poles (3 NO), 80A, 480V AC Coil, Non-Reversing | Schneider Electric (Square D)

The LC1D80T6 from Schneider Electric (Square D) is a 3-phase, 80-amp contactor, designed to handle heavy-duty electrical loads up to 480 VAC. This contactor is commonly used in industrial and commercial applications such as motor control, lighting systems, and HVAC equipment. The LC1D80T6 contactor features a robust design with a long mechanical life of 10 million operations and a high electrical life of 1 million operations. It has silver-cadmium oxide contacts for enhanced conductivity and durability. The contactor is equipped with auxiliary contacts for added functionality and versatility. Key Features: * 3-pole contactor for 3-phase applications * 80-amp current rating for heavy-duty loads * 480 VAC voltage rating for high-power applications * Long mechanical life of 10 million operations for extended service * High electrical life of 1 million operations for reliable performance * Silver-cadmium oxide contacts for superior conductivity and durability * Auxiliary contacts for added functionality and versatility Our HVAC supply store is your trusted source for industrial electrical components. We offer competitive prices, fast shipping, and expert support. Contact us today to learn more about the LC1D80T6 contactor or to place an order. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 480 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
