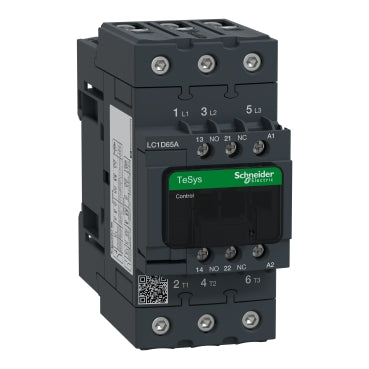

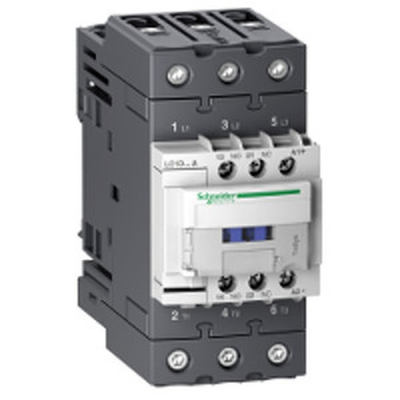

LC1D65AU7 | TeSys D Contactor, 3-Poles (3 NO), 65A, 240V AC Coil, Non-Reversing | Schneider Electric (Square D)

LC1D65AU7: 240Vac 3 Pole 65A Non-Reverse Contactor from Schneider Electric (Square D) The Schneider Electric (Square D) LC1D65AU7 contactor is a top-of-the-line 240Vac 3-pole contactor with a 65A current rating. This contactor is designed to provide reliable and efficient control of electrical circuits in a wide range of industrial applications. Made with high-quality materials, the LC1D65AU7 contactor features a robust construction for enhanced durability and long-lasting performance. It has a compact design, making it ideal for applications where space is limited. The contactor's coil voltage is 240V, and it has a frequency of 50/60Hz for versatile operation. With its non-reverse operation, the LC1D65AU7 contactor ensures that the connected load is only energized in one direction, preventing potential damage or malfunctions. The contactor's main contacts are rated for 65A, making it suitable for controlling high-power loads. Our HVAC supply store offers the best prices and fast shipping for the Schneider Electric (Square D) LC1D65AU7 contactor. Contact us today to place your order and experience the exceptional quality and performance of this reliable contactor! TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

range

TeSys;TeSys Deca

Range of Product

TeSys D;TeSys Deca

Product or Component Type

Contactor

device short name

LC1D

contactor application

Motor control;Resistive load

utilisation category

AC-4;AC-1;AC-3;AC-3e

poles description

3P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC

[Ie] rated operational current

80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;65 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;65 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit

[Uc] control circuit voltage

240 V AC 50/60 Hz

motor power kW

11 kW 400 V AC 50/60 Hz AC-4);18.5 kW 220...230 V AC 50/60 Hz AC-3);30 kW 380...400 V AC 50/60 Hz AC-3);37 kW 500 V AC 50/60 Hz AC-3);37 kW 660...690 V AC 50/60 Hz AC-3);18.5 kW 220...230 V AC 50/60 Hz AC-3e);30 kW 380...400 V AC 50/60 Hz AC-3e);37 kW 500 V AC 50/60 Hz AC-3e);37 kW 660...690 V AC 50/60 Hz AC-3e)

Maximum Horse Power Rating

40 hp 460/480 V at AC 50/60 Hz for 3 phase;5 hp 115 V at AC 50/60 Hz for 1 phase;10 hp 230/240 V at AC 50/60 Hz for 1 phase;20 hp 200/208 V at AC 50/60 Hz for 3 phase;20 hp 230/240 V at AC 50/60 Hz for 3 phase;50 hp 575/600 V at AC 50/60 Hz for 3 phase

compatibility code

LC1D

pole contact composition

3 NO

contact compatibility

M2

protective cover

With

[Ith] conventional free air thermal current

10 A 140 °F (60 °C) signalling circuit;80 A 140 °F (60 °C) power circuit

Irms rated making capacity

140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;1000 A 440 V power circuit IEC 60947

rated breaking capacity

1000 A 440 V power circuit IEC 60947

[Icw] rated short-time withstand current

520 A 104 °F (40 °C) - 10 s power circuit;900 A 104 °F (40 °C) - 1 s power circuit;110 A 104 °F (40 °C) - 10 min power circuit;260 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit

associated fuse rating

10 A gG signalling circuit IEC 60947-5-1;125 A gG <= 690 V type 1 power circuit;125 A gG <= 690 V type 2 power circuit

average impedance

1.5 mOhm - Ith 80 A 50 Hz power circuit

power dissipation per pole

9.6 W AC-1;6.3 W AC-3;6.3 W AC-3e

[Ui] rated insulation voltage

Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL;Power circuit 690 V IEC 60947-4-1

overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

6 Mcycles

electrical durability

1.4 Mcycles 80 A AC-1 <= 440 V;1.45 Mcycles 65 A AC-3 <= 440 V;1.45 Mcycles 65 A AC-3e <= 440 V

control circuit type

AC 50/60 Hz

coil technology

Without built-in suppressor module

control circuit voltage limits

0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz

inrush power in VA

140 VA 60 Hz 0.75 68 °F (20 °C));160 VA 50 Hz 0.75 68 °F (20 °C))

hold-in power consumption in VA

13 VA 60 Hz 0.3 68 °F (20 °C));15 VA 50 Hz 0.3 68 °F (20 °C))

heat dissipation

4…5 W 50/60 Hz

operating time

4...19 ms opening;12...26 ms closing

maximum operating rate

3600 cyc/h 140 °F (60 °C)

connections - terminals

Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) solid without cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) solid without cable end

tightening torque

Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2;Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) EverLink BTR screw connectors pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25...400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Rail;Plate

standards

CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1

Product Certifications

GOST;UL;CSA;CCC

IP degree of protection

IP20 front face IEC 60529

protective treatment

THIEC 60068-2-30

climatic withstand

IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure
