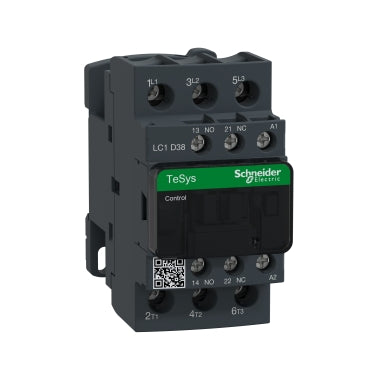

LC1D38G7 | TeSys D contactor 3P(3 NO), AC-3, <= 440 V 38 A, 120 V AC 50/60 Hz coil | Schneider Electric (Square D)

Schneider Electric (Square D) LC1D38G7 Contactor: Dependable Control for Industrial Applications The Schneider Electric (Square D) LC1D38G7 contactor is a robust and reliable solution for controlling electrical circuits in demanding industrial environments. Engineered with a 120V coil, this contactor features three poles and 38A contacts, providing ample capacity for various applications. Constructed from durable materials, the LC1D38G7 boasts a sturdy frame and dependable contacts, ensuring longevity and optimal performance. Its compact design allows for easy installation and space optimization within electrical panels and control systems. This contactor is designed for versatility, supporting a wide range of applications, including motor control, lighting systems, and other electrical loads. Its reliable operation and extended life expectancy make it an ideal choice for industrial engineers and maintenance professionals seeking durable and efficient solutions for their electrical systems. Our HVAC supply store offers the Schneider Electric (Square D) LC1D38G7 contactor at competitive prices, ensuring cost-effective solutions for your industrial needs. Our commitment to fast shipping ensures minimal downtime, allowing you to keep your operations running smoothly. Contact us today to place your order and experience the exceptional service and product quality Our HVAC supply store is known for! TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 38A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 25HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.84 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

range

TeSys;TeSys Deca

Range of Product

TeSys D;TeSys Deca

Product or Component Type

Contactor

device short name

LC1D

contactor application

Resistive load;Motor control

utilisation category

AC-4;AC-1;AC-3;AC-3e

poles description

3P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC

[Ie] rated operational current

50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;38 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;38 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit

[Uc] control circuit voltage

120 V AC 50/60 Hz

motor power kW

18.5 kW 500 V AC 50/60 Hz AC-3);18.5 kW 660...690 V AC 50/60 Hz AC-3);7.5 kW 400 V AC 50/60 Hz AC-4);18.5 kW 380...400 V AC 50/60 Hz AC-3);9 kW 220...230 V AC 50/60 Hz AC-3);18.5 kW 415...440 V AC 50/60 Hz AC-3);18.5 kW 500 V AC 50/60 Hz AC-3e);18.5 kW 660...690 V AC 50/60 Hz AC-3e);18.5 kW 380...400 V AC 50/60 Hz AC-3e);9 kW 220...230 V AC 50/60 Hz AC-3e);18.5 kW 415...440 V AC 50/60 Hz AC-3e)

Maximum Horse Power Rating

10 hp 230/240 V at AC 50/60 Hz for 3 phase;10 hp 200/208 V at AC 50/60 Hz for 3 phase;5 hp 240 V at AC 50/60 Hz for 1 phase;20 hp 480 V at AC 50/60 Hz for 3 phase;25 hp 600 V at AC 50/60 Hz for 3 phase

compatibility code

LC1D

pole contact composition

3 NO

contact compatibility

M2

protective cover

With

[Ith] conventional free air thermal current

10 A 140 °F (60 °C) signalling circuit;50 A 140 °F (60 °C) power circuit

Irms rated making capacity

140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;550 A 440 V power circuit IEC 60947

rated breaking capacity

550 A 440 V power circuit IEC 60947

[Icw] rated short-time withstand current

60 A 104 °F (40 °C) - 10 min power circuit;430 A 104 °F (40 °C) - 1 s power circuit;150 A 104 °F (40 °C) - 1 min power circuit;310 A 104 °F (40 °C) - 10 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit

associated fuse rating

10 A gG signalling circuit IEC 60947-5-1;63 A gG <= 690 V type 1 power circuit;63 A gG <= 690 V type 2 power circuit

average impedance

2 mOhm - Ith 50 A 50 Hz power circuit

power dissipation per pole

5 W AC-1;3 W AC-3;3 W AC-3e

[Ui] rated insulation voltage

Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL;Power circuit 690 V IEC 60947-4-1

overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

15 Mcycles

electrical durability

1.4 Mcycles 50 A AC-1 <= 440 V;1.4 Mcycles 38 A AC-3 <= 440 V;1.4 Mcycles 38 A AC-3e <= 440 V

control circuit type

AC 50/60 Hz

coil technology

Without built-in suppressor module

control circuit voltage limits

0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz

inrush power in VA

70 VA 60 Hz 0.75 68 °F (20 °C));70 VA 50 Hz 0.75 68 °F (20 °C))

hold-in power consumption in VA

7.5 VA 60 Hz 0.3 68 °F (20 °C));7 VA 50 Hz 0.3 68 °F (20 °C))

heat dissipation

2…3 W 50/60 Hz

operating time

4...19 ms opening;12...22 ms closing

maximum operating rate

3600 cyc/h 140 °F (60 °C)

connections - terminals

Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (2.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 2 0.00…0.02 in² (2.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1…10 mm²) flexible with cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) solid without cable end;Power circuit screw clamp terminals 2 0.00…0.02 in² (2.5…10 mm²) solid without cable end

tightening torque

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25...400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Rail;Plate

standards

CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1

Product Certifications

BV;UL;RINA;DNV;CSA;LROS (Lloyds register of shipping);GOST;CCC;GL

IP degree of protection

IP20 front face IEC 60529

protective treatment

THIEC 60068-2-30

climatic withstand

IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat

<
