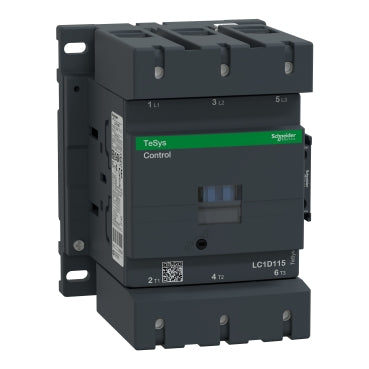

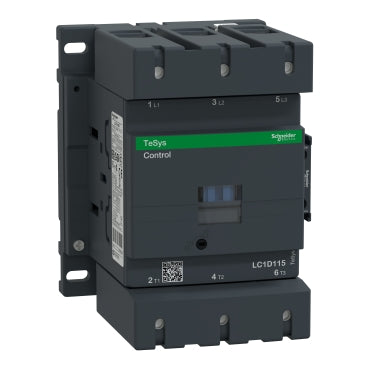

LC1D115U7 | TeSys D Contactor, 3-Poles (3 NO), 115A, 240V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) LC1D115U7 240V Contactor: Enhanced Electrical Control The LC1D115U7 contactor from Schneider Electric (Square D) is a reliable and versatile component designed for applications requiring efficient electrical control. Featuring a compact size, this contactor offers superior performance and durability in demanding industrial environments. The LC1D115U7 contactor operates at 240 volts and features a 1NO/1NC auxiliary contact configuration, providing increased flexibility for various control applications. Its robust construction ensures reliable operation, making it suitable for heavy-duty industrial environments. Key Features: - 240 volts operating voltage - 1NO/1NC auxiliary contact configuration - Compact design for space-saving applications - Proven reliability for demanding industrial environments Applications: - Motor control in industrial machinery - Lighting control systems - Power distribution panels - Automation and process control Trust in Schneider Electric (Square D) for top-quality electrical solutions. Contact our HVAC supply store today for the best prices and fast shipping on your LC1D115U7 contactor and other electrical products. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 115A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 30HP at 200 to 208VAC, 40HP at 240VAC, 75HP at 480VAC and 100HP at 600VAC three phase. When used with a 480VAC up to 250A circuit breaker, this contactor can have a SCCR up to 100kA. When used with a 600VAC up to 250A circuit breaker, this contactor can have a SCCR up to 50kA. When used with 600VAC Class J or CC fuses up to 250A, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

range

TeSys

Range of Product

TeSys D

Product or Component Type

Contactor

device short name

LC1D

contactor application

Motor control;Resistive load

utilisation category

AC-3;AC-1;AC-4;AC-3e

poles description

3P

[Ue] rated operational voltage

Power circuit <= 1000 V AC 25...400 Hz;Power circuit <= 300 V DC

[Ie] rated operational current

200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;115 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;115 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit

[Uc] control circuit voltage

240 V AC 50/60 Hz

motor power kW

30 kW 220...230 V AC 50/60 Hz AC-3);55 kW 380...400 V AC 50/60 Hz AC-3);59 kW 415...440 V AC 50/60 Hz AC-3);75 kW 500 V AC 50/60 Hz AC-3);80 kW 660...690 V AC 50/60 Hz AC-3);65 kW 1000 V AC 50/60 Hz AC-3);18.5 kW 400 V AC 50/60 Hz AC-4);30 kW 220...230 V AC 50/60 Hz AC-3e);55 kW 380...400 V AC 50/60 Hz AC-3e);59 kW 415...440 V AC 50/60 Hz AC-3e);75 kW 500 V AC 50/60 Hz AC-3e);80 kW 660...690 V AC 50/60 Hz AC-3e);65 kW 1000 V AC 50/60 Hz AC-3e)

Maximum Horse Power Rating

30 hp 200/208 V at AC 50/60 Hz for 3 phase;40 hp 230/240 V at AC 50/60 Hz for 3 phase;75 hp 460/480 V at AC 50/60 Hz for 3 phase;100 hp 575/600 V at AC 50/60 Hz for 3 phase

compatibility code

LC1D

pole contact composition

3 NO

contact compatibility

M13

protective cover

With

[Ith] conventional free air thermal current

200 A 140 °F (60 °C) power circuit

Irms rated making capacity

1260 A 440 V power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1

rated breaking capacity

1100 A 440 V power circuit IEC 60947

[Icw] rated short-time withstand current

250 A 104 °F (40 °C) - 10 min power circuit;550 A 104 °F (40 °C) - 1 min power circuit;950 A 104 °F (40 °C) - 10 s power circuit;1100 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit

associated fuse rating

250 A gG <= 690 V type 1 power circuit;200 A gG <= 690 V type 2 power circuit;10 A gG signalling circuit

average impedance

0.6 mOhm - Ith 200 A 50 Hz power circuit

power dissipation per pole

24 W AC-1;7.9 W AC-3;7.9 W AC-3e

[Ui] rated insulation voltage

Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL

overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

8 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

8 Mcycles

electrical durability

0.8 Mcycles 200 A AC-1 <= 440 V;0.95 Mcycles 115 A AC-3 <= 440 V;0.95 Mcycles 115 A AC-3e <= 440 V

control circuit type

AC 50/60 Hz

coil technology

Built-in bidirectional peak limiting diode suppressor

control circuit voltage limits

0.3...0.5 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.15 Uc -40…131 °F (-40…55 °C) operational AC 50/60 Hz;1...1.15 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz

inrush power in VA

280…350 VA 60 Hz 0.8 68 °F (20 °C));280…350 VA 50 Hz 0.8 68 °F (20 °C))

hold-in power consumption in VA

2…18 VA 60 Hz 0.3 68 °F (20 °C));2…18 VA 50 Hz 0.3 68 °F (20 °C))

heat dissipation

3…8 W 50/60 Hz

operating time

6...20 ms opening;20...50 ms closing

maximum operating rate

2400 cyc/h 140 °F (60 °C)

connections - terminals

Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible with cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible with cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) solid without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) solid without cable end

tightening torque

Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25...400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Plate;Rail

standards

CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508

Product Certifications

RINA;GOST;DNV;LROS (Lloyds register of shipping);CCC;BV;UL;GL;CSA;UKCA;CE

IP degree of protection

IP20 front face IEC 60529

protective treatment

THIEC 60068-2-30

climatic withstand

IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat

permissible ambient air temperature around the device

-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating

operating altitude

0...9842.52 ft (0...3000 m)

fire resistance

1562 °F (850 °C)
