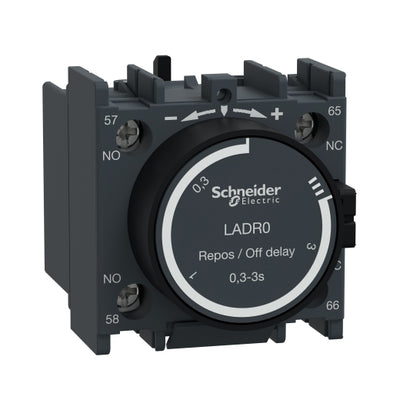

LADR0 | TeSys D Time Delay Auxiliary Contact Block, 1 NO + 1 NC, Screw Clamp Terminals, 690V AC 25-400 Hz | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADR0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LADR0 Documents

Datasheet More Info

Overview

Details for LADR0

LADR0 Contactor Timer, Analog by Schneider Electric (Square D) The LADR0 Contactor Timer is an analog timing device designed to control the operation of contactors in electrical circuits. With its precise timing capabilities, it enables precise control over the duration and timing of contactor operation. Key Features: * Analog timing mechanism * Adjustable timing range * Compact and easy to install * Durable construction for industrial applications Benefits: * Precise control over contactor operation * Improved efficiency and safety in electrical circuits * Reduced downtime and maintenance costs Applications: * Industrial automation * Motor control * Lighting systems * HVAC systems Technical Specifications: * Voltage: 120-240VAC * Frequency: 50/60Hz * Timing Range: 0.1-10 seconds * Output: Contact closure [CTA: Get the best prices and fast shipping on your LADR0 Contactor Timer from our HVAC supply store today! Contact us for a quote or to place an order.]

Specifications

Range: TeSys
TeSys Deca
Product name: TeSys Deca
Product or component type: Time delay auxiliary contact block
Range compatibility: TeSys Deca CAD
TeSys Deca LC1D
TeSys F LC1F
TeSys F CR1F
Mounting location: Front
Pole contact composition: 1 NO + 1 NC
Contacts operation: Time delay
Timer type: Off delay
Time delay range: 0.3...3 s
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
EN 50012
product certifications: IECEE CB Scheme
UL
CSA
CCC
EAC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 5 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid
Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid
Screw clamp terminals
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 48 mm
Width: 44 mm
Depth: 61 mm
Colour: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -40…70 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.200 cm
Package 1 Width: 6.500 cm
Package 1 Length: 5.000 cm
Package 1 Weight: 75.000 g
Unit Type of Package 2: S03
Number of Units in Package 2: 140
Package 2 Height: 30.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 11.070 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 1120
Package 3 Height: 75.000 cm
Package 3 Width: 60.000 cm
Package 3 Length: 80.000 cm
Package 3 Weight: 99.324 kg
