LADN01 | TeSys D - Auxiliary Contact Block - 1 NC - Screw-Clamps Terminals | Schneider Electric (Square D)

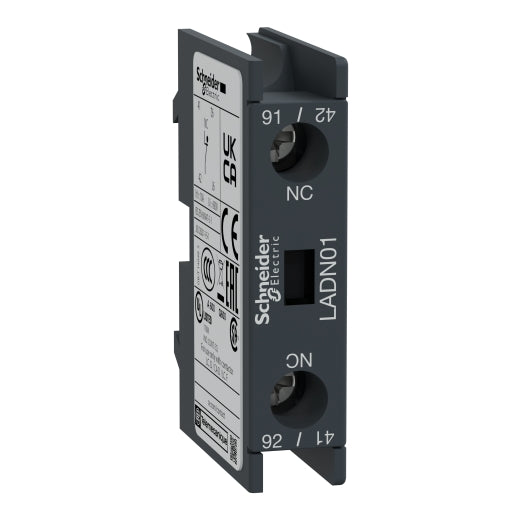

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN01

Jump to: Overview Specifications Reviews

Overview

Details for LADN01

Schneider Electric's LADN01 1 N/C Auxiliary Contact Block is a crucial component for enhancing the functionality of control circuits in electrical systems. Manufactured by Schneider Electric (Square D), it seamlessly integrates with the brand's renowned contactors and relays. This auxiliary contact block features screw terminals for secure and reliable electrical connections. As a normally closed (N/C) contact, it provides an essential safety function by breaking the circuit when the primary device it's connected to is de-energized. This contact block is designed for versatile applications in industrial, commercial, and residential settings, where enhanced control and safety measures are paramount. Schneider Electric's commitment to quality and innovation ensures superior performance and durability. Upgrade your control circuits today with our HVAC supply store's competitive pricing and fast shipping options.

Specifications

Range: TeSys
TeSys Deca
Product name: TeSys Deca
Product or component type: Auxiliary contact block
device short name: LADN
Range compatibility: TeSys Deca LC1D80/95 3P
TeSys Deca LC1D80 4P
TeSys Deca LC1D40008
TeSys Deca LC1D65008
TeSys F LC1F
TeSys Deca LC1D115
Mounting location: Front
Pole contact composition: 1 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
product certifications: CB
UL
CSA
CCC
EAC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 1 s
120 A 500 ms
140 A 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 48 mm
Width: 13 mm
Depth: 35 mm
Net weight: 0.02 kg
Colour: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.1 cm
Package 1 Width: 4.2 cm
Package 1 Length: 2.7 cm
Package 1 Weight: 20.0 g
Unit Type of Package 2: S01
Number of Units in Package 2: 84
Package 2 Height: 15.0 cm
Package 2 Width: 15.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 1.772 kg
