L0515-Y6BI1-C7AN | Circulator Pump | Bronze | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Sweat (3/4") | 250 PSI Max Press. | Integral Flow Check | Series LoadMatch | Taco

Taco | L0515-Y6BI1-C7AN
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to L0515-Y6BI1-C7AN

Documents and manuals

Overview

Details for L0515-Y6BI1-C7AN

Taco 1/25hp 115v 3250rpm Pump (L0515-Y6BI1-C7AN) This Taco pump is a reliable and efficient solution for various industrial and commercial applications. With its 1/25 horsepower motor, it provides a flow rate of up to 10 gallons per minute, making it suitable for a wide range of pumping needs. The pump's compact design and lightweight construction make it easy to install and maintain. It features a stainless steel shaft and bearings for durability and corrosion resistance, ensuring long-lasting performance. The Taco 1/25hp 115v 3250rpm Pump is ideal for applications requiring a compact and efficient pumping solution. Its versatility makes it a valuable asset for various industries, including manufacturing, food processing, and water treatment. Specifications: * Power: 1/25 horsepower * Voltage: 115 volts * Speed: 3250 RPM * Flow rate: Up to 10 GPM * Inlet/outlet size: 1/2 inch NPT * Motor protection: Thermal overload Invest in the Taco 1/25hp 115v 3250rpm Pump today for reliable and efficient pumping performance. Shop our HVAC supply store for the best prices and fast shipping on this and other industrial products.

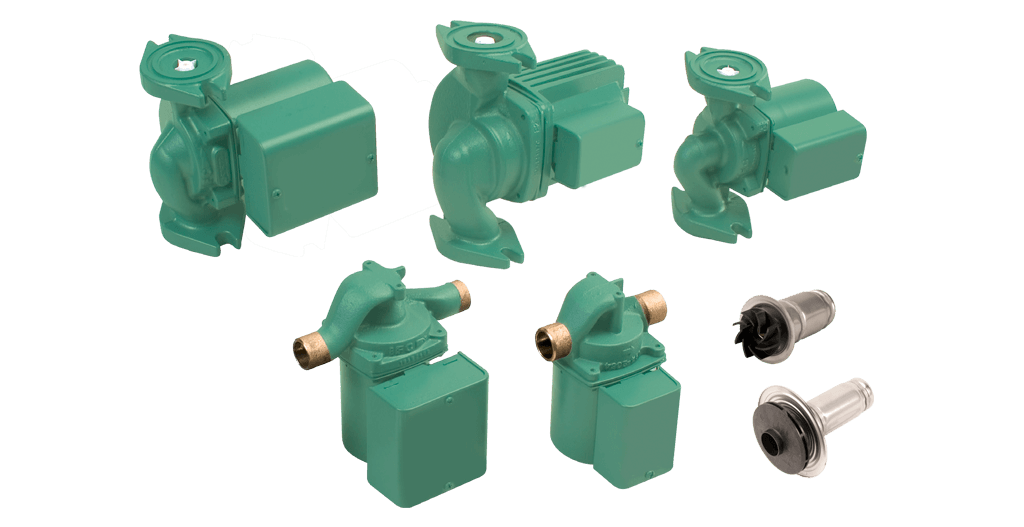

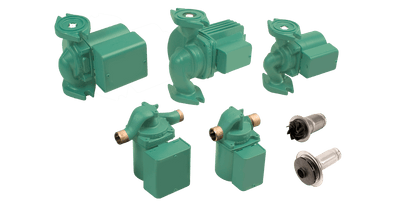

LoadMatch Circulators

Taco LoadMatch ® Circulators are designed for quiet, efficient operation on LoadMatch ® Fan Coil Heating and Cooling Systems. Each circulator includes a removable Integral Flow Check (IFC ®) to prevent gravity flow and reduce installation costs. An anti-condensate baffle prevents the build up of condensate on the motor windings when pumping chilled water. The unique, field serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance-free design of the LoadMatch ® Circulators provides unmatched reliability.

Performance Data

Min. Fluid Temp.: 32º F (0º C)
Max. Fluid Temp. Cast Iron or Stainless Steel: 230º F (110º C)
Max. Fluid Temp. Bronze: 220º F (104º C)
Max. Working Pressure: 200 PSI
Available in 115V, 230V or 277V voltages
Optional 0-10V variable speed control
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged, 3/4″ Sweat

Features
  • Integral Flow Check (IFC)–Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service
  • Improved Performance vs. In-Line Flow Checks
  • Exclusive Anti-Condensate Baffle (ACB)—Protects motor windings against condensate build-up in chilled water systems
  • Unique Replaceable Cartridge Design—Field Serviceable
  • Unmatched Reliability—Maintenance Free
  • Quiet, Efficient Operation
  • Direct Drive – Low Power Consumption
  • Standard High Capacity Output
  • Compact Design
  • Self Lubricating
  • No Mechanical Seal
Applications
  • LoadMatch® Fan Coil Heating and Cooling Systems

Specifications

Item Number L0515-Y6BI1-C7AN
Brand Taco
