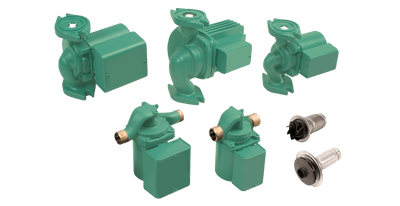

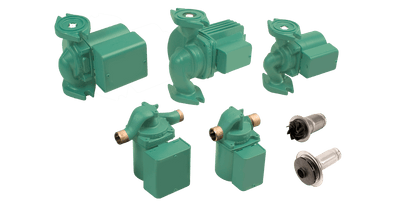

L0410-Y6BV1-C7AN | Circulator Pump (Variable Speed) | Bronze | 1/40 HP | 115V | Single Phase | 0.55A | 3250 RPM | Sweat (3/4") | 200 PSI Max Press. | Integral Flow Check | Series LoadMatch | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to L0410-Y6BV1-C7AN

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco L0410-Y6BV1-C7AN Documents

Datasheet Replacement Parts Installation Instructions More Info

Overview

Details for L0410-Y6BV1-C7AN

115V 3/4" BRZ CIR PUMP This heavy-duty Taco 115V 3/4" BRZ bronze circulator pump is ideal for residential and light commercial applications. It features a cast iron body with a Noryl impeller and bronze casing, making it suitable for circulating hot or cold water in hydronic heating and cooling systems. With its high-efficiency ECM motor, this pump provides optimal energy savings and quiet operation. The pump's compact design and easy-to-install construction make it a convenient choice for various applications. It comes equipped with a manual reset thermal overload protector to prevent overheating and ensure long-term reliability. Key Features: * Bronze casing for durability and corrosion resistance * Noryl impeller for strength and longevity * Cast iron body for superior durability * ECM motor for energy efficiency and quiet operation * Manual reset thermal overload protector for added safety * Compact design for easy installation and space-saving Applications: * Residential and light commercial hydronic heating and cooling systems * Hot water recirculation * Solar thermal systems * Geothermal systems Our HVAC supply store - We offer the best prices and fast shipping for your products!

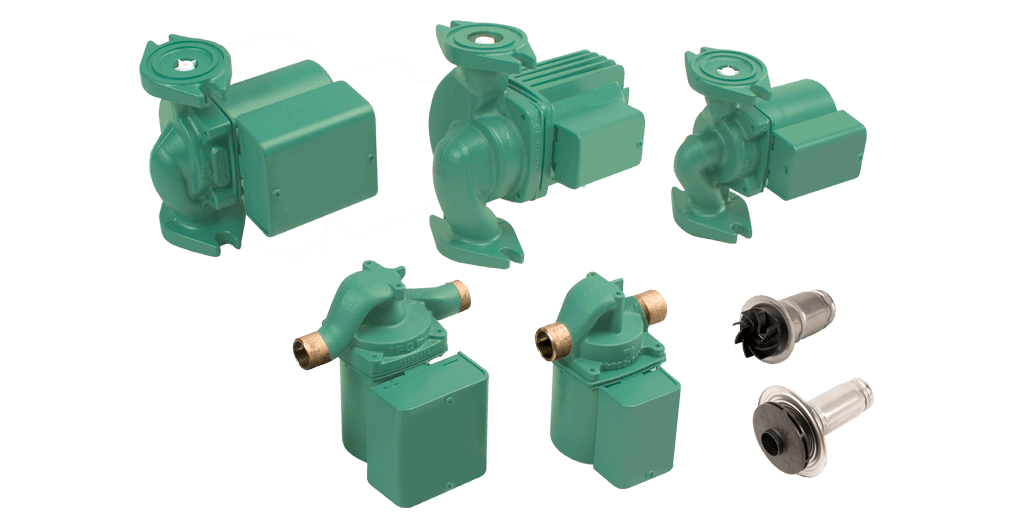

LoadMatch Circulators

Taco LoadMatch ^® Circulators are designed for quiet, efficient operation on LoadMatch ^® Fan Coil Heating and Cooling Systems. Each circulator includes a removable Integral Flow Check (IFC ^®) to prevent gravity flow and reduce installation costs. An anti-condensate baffle prevents the build up of condensate on the motor windings when pumping chilled water. The unique, field serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance-free design of the LoadMatch ^® Circulators provides unmatched reliability.

Performance Data

Min. Fluid Temp.: 32º F (0º C)
Max. Fluid Temp. Cast Iron or Stainless Steel: 230º F (110º C)
Max. Fluid Temp. Bronze: 220º F (104º C)
Max. Working Pressure: 200 PSI
Available in 115V, 230V or 277V voltages
Optional 0-10V variable speed control
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged, 3/4″ Sweat

Features

Integral Flow Check (IFC)–Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service
Improved Performance vs. In-Line Flow Checks
Exclusive Anti-Condensate Baffle (ACB)—Protects motor windings against condensate build-up in chilled water systems
Unique Replaceable Cartridge Design—Field Serviceable
Unmatched Reliability—Maintenance Free
Quiet, Efficient Operation
Direct Drive – Low Power Consumption
Standard High Capacity Output
Compact Design
Self Lubricating
No Mechanical Seal

Applications

LoadMatch^® Fan Coil Heating and Cooling Systems
