SIMPLYVAV AIRFLOW PICKUP KITThe KIT-8001 airflow pickup kit from KMC Controls is designed to provide accurate and reliable airflow measurements in various industrial applications. This kit includes a pitot tube sensor, a transmitter, and a mounting bracket, making it a complete solution for airflow monitoring. The pitot tube sensor is constructed from durable materials, ensuring accurate measurements even in challenging environments. The transmitter converts the pressure readings from the pitot tube sensor into an electrical signal, providing real-time airflow data. This data can be easily transmitted and processed for further analysis and control purposes. The mounting bracket allows for secure and easy installation of the kit, ensuring proper alignment and optimal performance.With its precision engineering and high-quality components, the KIT-8001 airflow pickup kit is a valuable tool for engineers and maintenance professionals in industries such as HVAC, manufacturing, and energy management. Our HVAC supply store has the largest selection of products from KMC Controls! We offer fast shipping and the best prices.

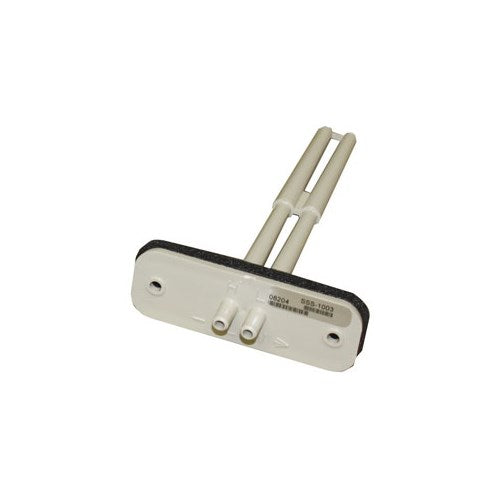

The KMC SSS-1000 sensors are designed to sense differential pressure in the inlet section of VAV (Variable Air Volume) terminal units and fan terminal units. They can also be used to sense differential pressure at other locations in the main or branch duct systems. The differential pressure read between the high “H” port and the low “L” port can be used to determine the air flow. Static pressure can also be measured using just one of the ports rotated 90°.

Models offer up to four sensing points and sensing lengths of 3-5/32 to 9-29/32 inches to accommodate box size diameters of 4 to 16 inches.

These sensors are typically used in conjunction with the CSC-1000/2000/3000 series, CSP-4000/5000 series, KMD-7000 series, BAC-7000 series, BAC-8000, and BAC-9000 series of VAV controllers for individual zone control in HVAC systems.

For using SSS-100x sensors with CSC-3000 series, CSP-4000/5000 series, KMD-7000 series, BAC-7000, BAC-8000 series, and BAC-9000 series controllers, use a 3/8″ to 1/4″ barb union adapter and appropriate polyethylene tubing to the sensor and controller. For maximum accuracy in the CSP-5000 series, KMD-7000 series, and BAC-7000 series controllers, the 3/8″ OD tubing between the sensor and the adapter should be as short as possible, and the 1/4″ OD tubing from the adapter to the controller should be 24″ long (on both the High and the Low sides). OR use the equivalent SSS-101x sensor.
