Dwyer Instruments IT-W11 Thermometer Thermowell
Dwyer's IT-W11 is a 304 stainless steel thermometer thermowell designed to protect temperature sensors from corrosive or harsh process media. It features a 1/2" NPT male threaded connection that allows it to be easily installed into tanks, pipes, or other process equipment. The IT-W11's 2-1/2" insertion length ensures accurate temperature measurement, even in applications with limited space.
Constructed from durable 304 stainless steel, the IT-W11 is resistant to corrosion and oxidation, providing reliable performance in demanding industrial environments. It is designed to accommodate a 1/4" diameter temperature sensor and includes a set screw for secure mounting.
The Dwyer IT-W11 thermometer thermowell is commonly used in various industrial applications, including:
* Temperature monitoring in tanks and pipelines
* Water temperature measurement in HVAC systems
* Temperature control in chemical processing
* Food and beverage process temperature monitoring
Our HVAC supply store offers the IT-W11 thermowell at an unbeatable price, ensuring your industrial operations run smoothly. Experience the quality and reliability of Dwyer Instruments temperature measurement solutions and order your IT-W11 thermowell today!

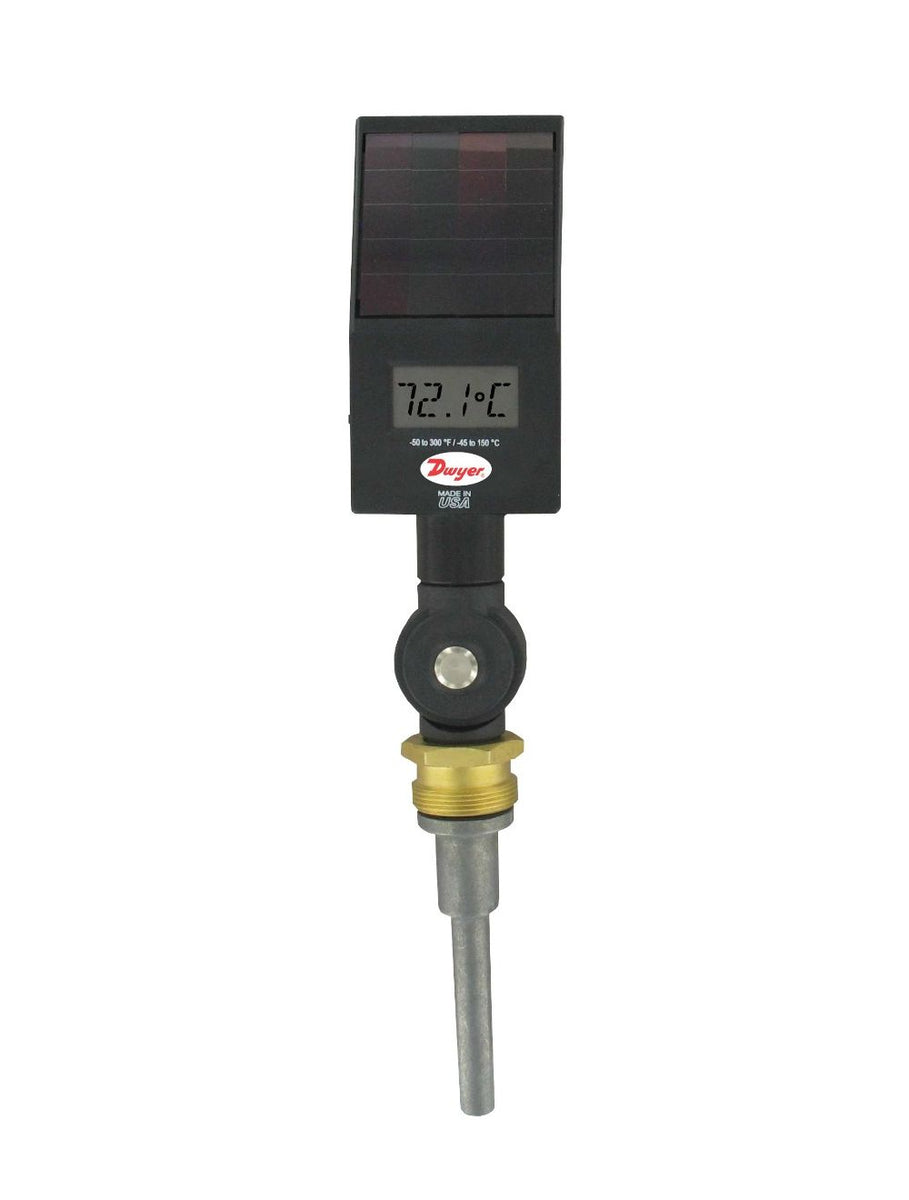

SERIES SIT SOLAR POWERED INDUSTRIAL THERMOMETER
Adjustable Stem and Display Housing, °F/°C Switchable
The Series SIT Solar Powered Industrial Thermometer accurately measures temperature with no batteries or power cables. For the best possible viewing angle, the stem can be adjusted 180° in the vertical plane and the display housing can be adjusted 180° in the horizontal plane providing a full 360° rotation. Engineering units are field selectable with an external dip switch enabling the thermometer to read from -50 to 300°F or -45 to 150°C. In addition, the large 1/2" digit display allows measurements to be easily read across the room. Rated as low as 10 lux, the Series SIT solar thermometer is excellent for reading in low light applications.
Specifications
- Series
- SIT SOLAR POWERED INDUSTRIAL THERMOMETER
- Category/Type
- Temperature
- Type
- Thermometers
- Series
- SIT SOLAR POWERED INDUSTRIAL THERMOMETER
- Temperature Range
- -50 to 300°F (-45 to 150°C).
- Accuracy
- 1% of reading or 1°F/°C whichever is greater.
- Resolution
- 0.1° between -19.9 to 199.9°F (-28 to 93°C).
- Lux Rating
- 10 lux.
- Display
- 3-digit LCD.
- Response Time
- 10 seconds.
- Sensor
- Glass passivated thermistor – NTC.
- Temperature Limits
- -30 to 140°F (-35 to 60°C).
- Humidity Limits
- 0 to 100% (non-condensing).
- Housing Material
- Hi-impact ABS plastic.
- Weight
- SIT-935: 8.5 oz (0.24 kg); SIT-960: 17oz (0.48 kg).
