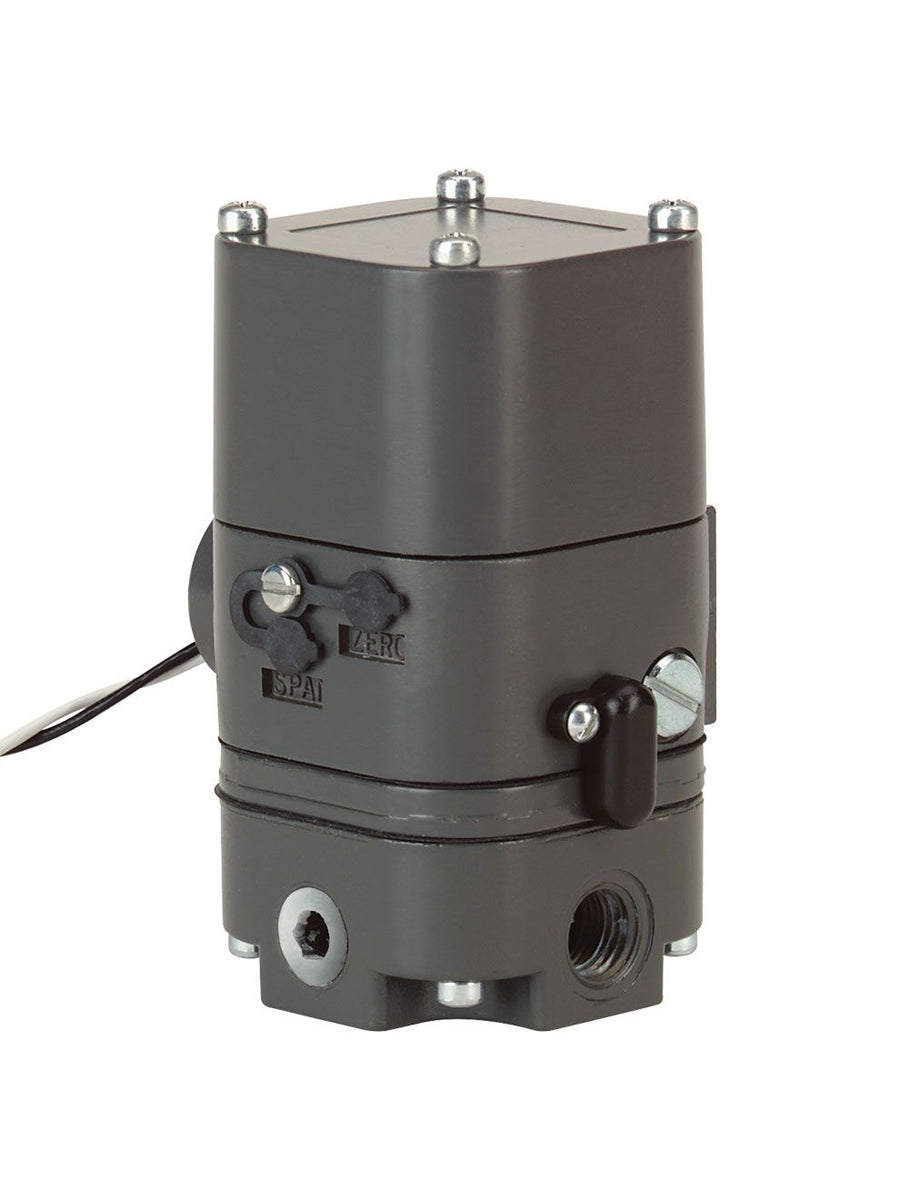

IP-44 | Current to pressure transducer | 4-20 mA input | 6-30 psi (40-200 kPa) output. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IP-44

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments IP-44 Documents

Instruction Manual Series IP Catalog Page More Info

Overview

Details for IP-44

Dwyer Instruments IP-44 Current-to-Pressure Transmitter: The Precision Measurement Solution for Demanding Applications The Dwyer Instruments IP-44 Current-to-Pressure Transmitter offers unparalleled accuracy and reliability for monitoring and controlling pressure in industrial settings. Featuring a compact and rugged design, this transmitter is ideal for applications where precise pressure measurement and transmission are critical. The IP-44 converts a 4-20 mA input signal into a proportional pneumatic output, providing real-time pressure readings. Its high accuracy of Â±0.25% FS ensures reliable and precise pressure measurements, while its rugged construction withstands harsh industrial environments. Key Features: * Converts 4-20 mA input signal to pneumatic output * Accuracy of Â±0.25% FS for precise measurements * Rugged design for demanding industrial applications * Compact and easy to install * Ideal for monitoring and controlling pressure in various applications The Dwyer Instruments IP-44 Current-to-Pressure Transmitter is widely used in industries such as manufacturing, automation, and process control. Its versatility and reliability make it a valuable tool for engineers and maintenance professionals seeking accurate and reliable pressure monitoring solutions. Invest in the Dwyer Instruments IP-44 Current-to-Pressure Transmitter today and experience the benefits of precise pressure measurement and control. Contact our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Series IP Current to Pressure Transducers

Intrinsically Safe, NEMA 4X Enclosure, Field Reversible, Low Cost

The Series IP Current to Pressure Transducers converts a current input signal to a linearly proportional pneumatic output pressure. The features include built-in volume booster, low air consumption, field reversible (provides output which is inversely proportional to the input signal) and flexible zero and span adjustments. The rugged NEMA 4X enclosure allows splashdown and outdoor installation. The IP can be used for applications that require operation of valve actuators, pneumatic valve positioners, damper and louver actuators, final control elements, relays, air cylinders, web tensioners, clutches and brakes.

Product Applications

Applications that require the operation of valve actuators, pneumatic valve positioners, damper and louver actuators, final control elements, relays, air cylinders, web tensioners, clutches and brakes

Built-in volume booster
Low air consumption
Flexible zero plus span adjustments
NEMA 4X enclosure
Field reversible

Specifications

Series: IP Current to Pressure Transducers
Category/Type: Valves
Type: Current to Pressure Transducers
Series: IP Current to Pressure Transducers
Service: Oil free; clean dry air filtered to 40 microns.
Input Signal: 4-20 mA.
Input Impedance: IP-42: 180 ohms; IP-43 and IP-44: 220 ohms.
Air Pressure: Minimum: 3 psig (21 kPa) above maximum output; Maximum: 100 psig (700 kPa).
Linearity: <±0.75% of span.
Hysteresis: <1% of span.
Repeatability: <0.5% of span.
Supply Pressure Sensitivity: <±0.1% of span per psig (<±0.15% of span per 10 kPa).
Power Requirements: Loop powered.
Temperature Limits: -20 to 140°F (-30 to 60°C).
Pressure Connections: 1/4" female NPT.
Electrical Connection: 1/2" female NPT.
Air Consumption: 0.03 SCFM (0.5 m³/h) typical.
Output Capacity: 4.5 SCFM (7.6 m³/h ANR) at 25 psig (175 kPa) supply; 12 SCFM (20 m³/h) at 100 psig (700 kPa) supply.
Relief Capacity: 2 SCFM (3.4 m³/h) at 5 psig (35 kPa) above 20 psig (140 kPa) setpoint.
Weight: 2.1 lb (0.94 kg).
Agency Approvals: CE; FM.
