IF2712 | Industrial direct reading flowmeter | max. flow rate 14 GPM (50 LPM) water | 62 SCFM (1800 LPM) air | pressure drop 24" w.c. | 1" female NPT. | Dwyer Instruments

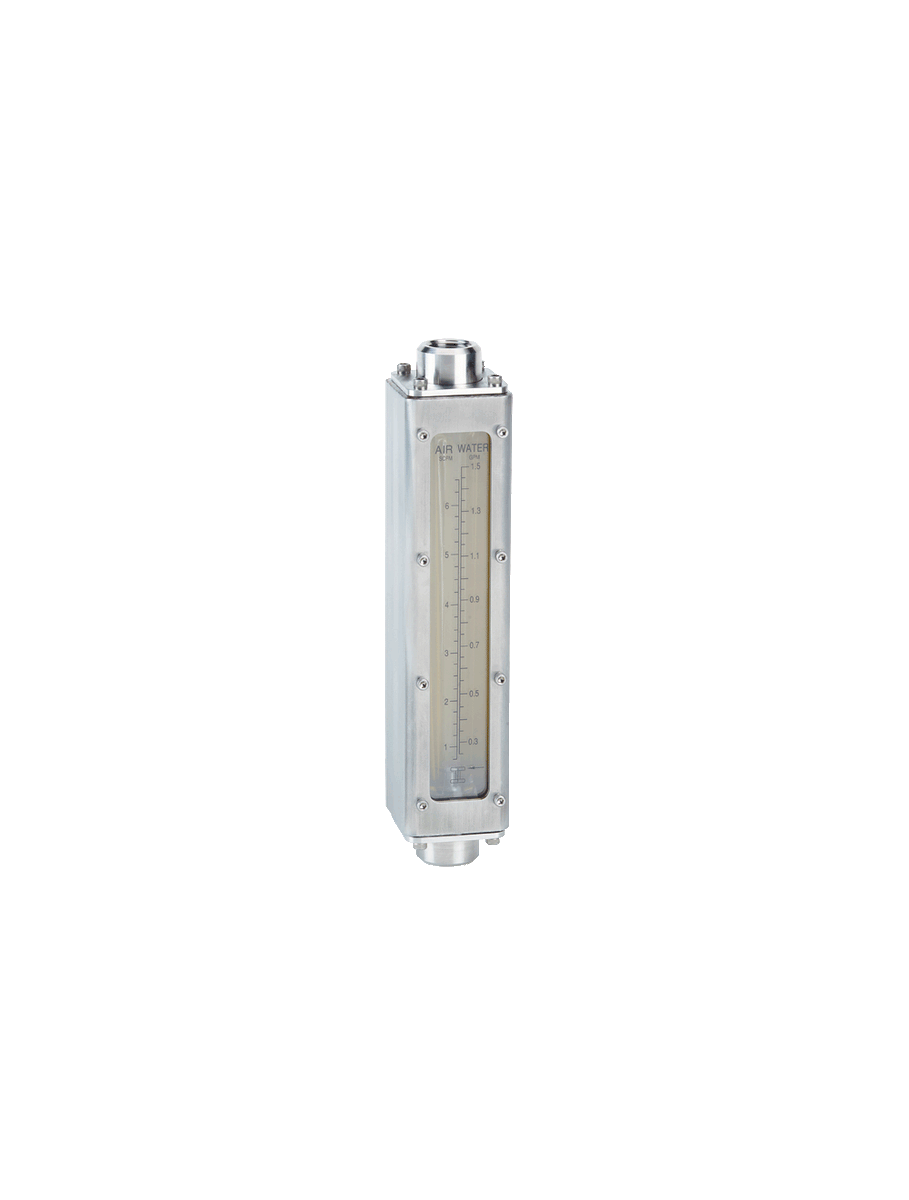

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IF2712

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments IF2712 Documents

Instruction Manual Series IF Catalog Page More Info

Overview

Details for IF2712

Dwyer Instruments IF2712 Flow Meter Dwyer Instruments IF2712 Flow Meter precisely measures gas flow rates up to 14 GPM (gallons per minute) or 62 SCFM (standard cubic feet per minute). Its rugged construction and durable materials ensure accurate and reliable readings in industrial settings. Key Features: * Capacity: 14 GPM / 62 SCFM * Durable materials for harsh environments * Measures gas flow rates with precision * Ideal for monitoring gas flow in industrial applications Benefits: * Accurate flow rate monitoring for optimal process control * Enhanced safety by monitoring gas flow in hazardous areas * Reduces downtime and maintenance costs * Improves efficiency and optimizes production Applications: * Chemical processing * Emissions monitoring * Air conditioning and refrigeration * Gas distribution and metering * Medical and scientific equipment For the best pricing and fast shipping on your industrial products, choose our HVAC supply store.

Series IF Industrial Direct Reading Flowmeters

Air/Water Direct Reading Scale, 304 SS Protective Shield

The Series IF Industrial Direct Reading Flowmeters are flowmeters that directly measure flow rates up to 116 GPM (439 LPM) for water and 250 SCFM (7080 LPM) for air service.

Note: Calibration data is provided with each unit and is unique to each scale. If you require a calibration certificate for your flowmeter, please see the option under Accessories. (Excludes: IF2714, IF2716 through IF2721).

Product Applications

Gas or liquid metering
Industrial pneumatic or hydraulic systems

Direct read scales with no need for correlation charts saves time
Detachable, clear 3/16" thick polycarbonate front shield provides protection at maximum rated temperature and pressure

Specifications

Series: IF Industrial Direct Reading Flowmeters
freeship
Category/Type: Flow
Type: Flowmeters
Series: IF Industrial Direct Reading Flowmeters
Service: Liquids or gases.
Wetted Materials: Flowtube: Borosilicate glass; float; guide rods; float stops; end; Fittings: 316 SS; O-rings: Fluoroelastomer.
Temperature Limit: 200°F (93°C).
Pressure Limit: 200 psi (13.8 bar); 125 psi for tube size 5 & 6.
Accuracy: ±3% of FS.
Repeatability: ±0.5% of FS.
Turn-down Ratio: 10:1.
Scale: Dual scale GPM and SCFM.
Process Connection: See Dimensional Drawing page.
Mounting: Vertical.
Front Shield: Polycarbonate.
Side Panels: 304 SS.
