IF2707 | Industrial direct reading flowmeter | max. flow rate 5 GPM (18 LPM) water | 21.5 SCFM (650 LPM) air | pressure drop 14" w.c. | 1" female NPT. | Dwyer Instruments

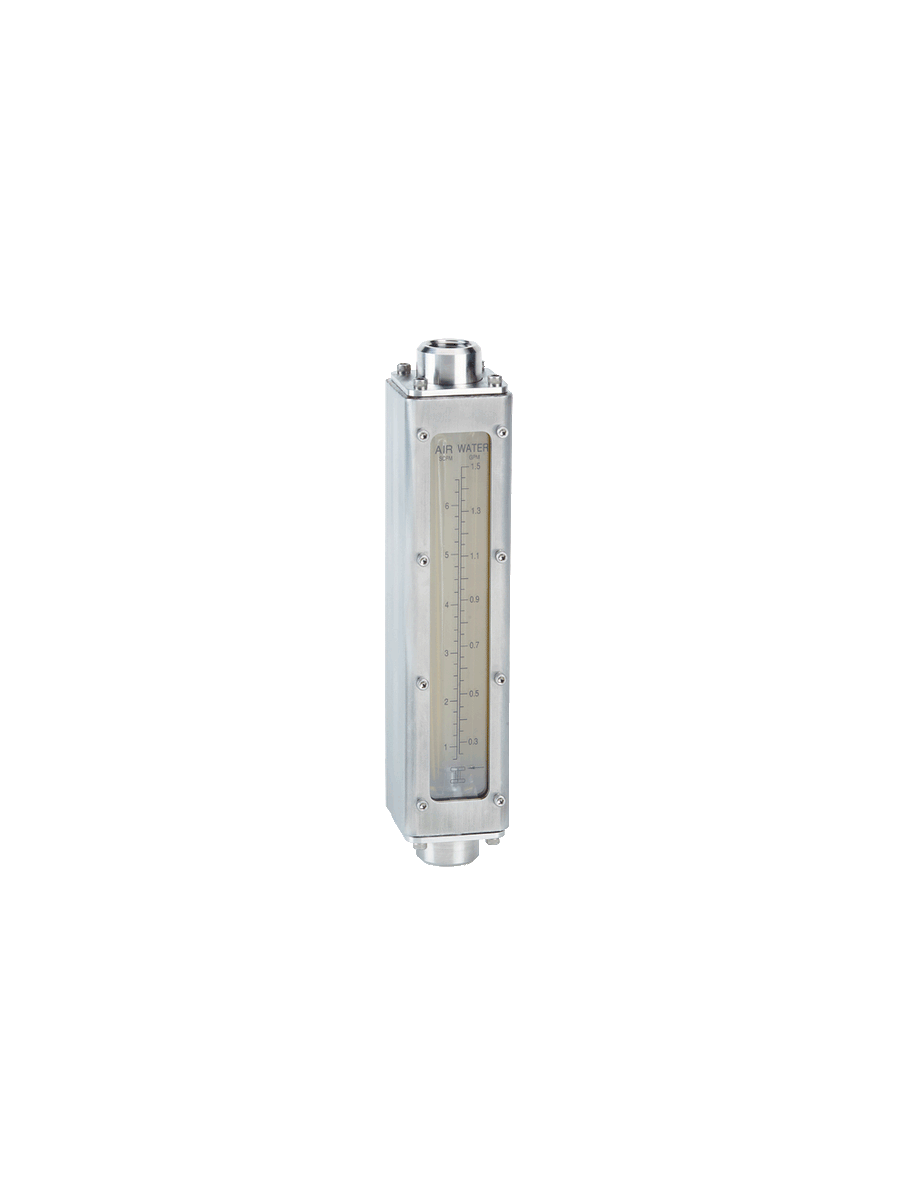

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IF2707

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments IF2707 Documents

Instruction Manual Series IF Catalog Page More Info

Overview

Details for IF2707

1" Flowmeter: IF2707 Dwyer Instruments Dwyer Instruments' IF2707 is a 1" flowmeter precisely engineered to measure flow rates of liquids compatible with brass and stainless steel. This industrial-grade flowmeter features a rugged construction and is ideal for a wide range of applications, including water, oil, and gas flow measurement. Key Features: - Measures flow rates up to 5 GPM (21.5 SCFM) - Easy-to-read 1.5" dial with 0.1 GPM graduations - Durable brass and stainless steel construction - Compact size for easy installation - Versatile design for various applications Benefits: - Accurately monitor flow rates for precise process control - Durable construction ensures long-term reliability - Compact design simplifies installation and maintenance - Wide range of applications, including water, oil, and gas flow measurement Applications: - Industrial and commercial water systems - Oil and gas pipelines - Process control systems - Laboratory and research facilities Trust Dwyer Instruments' IF2707 flowmeter to provide accurate and reliable flow rate measurements in your industrial applications. Our HVAC supply store offers competitive pricing and fast shipping. Order now to enhance your flow monitoring capabilities!

Series IF Industrial Direct Reading Flowmeters

Air/Water Direct Reading Scale, 304 SS Protective Shield

The Series IF Industrial Direct Reading Flowmeters are flowmeters that directly measure flow rates up to 116 GPM (439 LPM) for water and 250 SCFM (7080 LPM) for air service.

Note: Calibration data is provided with each unit and is unique to each scale. If you require a calibration certificate for your flowmeter, please see the option under Accessories. (Excludes: IF2714, IF2716 through IF2721).

Product Applications

Gas or liquid metering
Industrial pneumatic or hydraulic systems

Direct read scales with no need for correlation charts saves time
Detachable, clear 3/16" thick polycarbonate front shield provides protection at maximum rated temperature and pressure

Specifications

Series: IF Industrial Direct Reading Flowmeters
freeship
Category/Type: Flow
Type: Flowmeters
Series: IF Industrial Direct Reading Flowmeters
Service: Liquids or gases.
Wetted Materials: Flowtube: Borosilicate glass; float; guide rods; float stops; end; Fittings: 316 SS; O-rings: Fluoroelastomer.
Temperature Limit: 200°F (93°C).
Pressure Limit: 200 psi (13.8 bar); 125 psi for tube size 5 & 6.
Accuracy: ±3% of FS.
Repeatability: ±0.5% of FS.
Turn-down Ratio: 10:1.
Scale: Dual scale GPM and SCFM.
Process Connection: See Dimensional Drawing page.
Mounting: Vertical.
Front Shield: Polycarbonate.
Side Panels: 304 SS.
