I2-12062 | Immersion temperature sensor | 6" insertion length | PT 1000 Ω sensor. | Dwyer Instruments

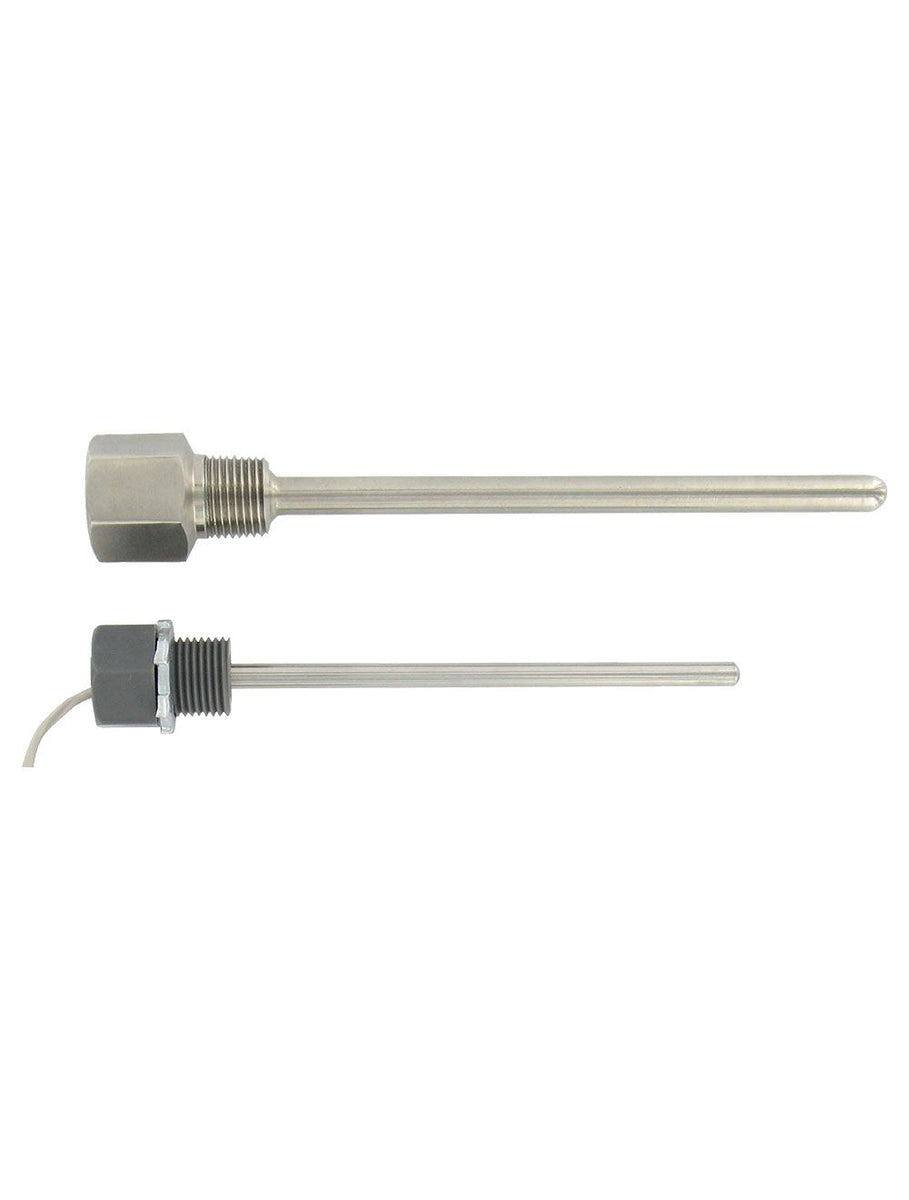

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I2-12062

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments I2-12062 Documents

Series I2-1 Catalog Page More Info

Overview

Details for I2-12062

The I2-12062 immersion temperature sensor from Dwyer Instruments provides accurate and reliable temperature measurements in liquid and gas applications. Its 6-inch stainless steel probe offers durability and precise sensing. A wide temperature range of -20Â°F to 230Â°F (-29Â°C to 110Â°C) makes it suitable for various industrial and HVAC systems. Features include a removable 10-foot cable for easy installation and maintenance, and a 1/2-inch NPT threaded connection for secure mounting. The sensor's fast response time ensures prompt detection of temperature changes, making it ideal for applications requiring real-time temperature monitoring. Trust our HVAC supply store for exceptional pricing and swift delivery of the I2-12062 immersion temperature sensor.

Series I2-1 Immersion Temperature Probes

RTD & Thermistor Outputs, 304 SS Probes

The Series I2-1 Immersion Temperature Probes are designed to monitor the hot and chilled water lines throughout a building’s water distribution loop. The multiple temperature sensor outputs allow these sensors to connect to virtually any digital building controller. The Series IW2 stainless steel thermowells allow the temperature sensors to be replaced without draining the water line. The temperature sensors are available in 4" and 6" insertion lengths.

Note: A Series IW2 Thermowell must be used on pressurized air and water lines to prevent leakage around the probe.

Product Applications

Hot or chilled water line monitoring
HVAC and building automation systems

Direct wall mounting
6´cable
1/2" internal NPT accepts conduit for more industrial installation

Specifications

Series: I2-1 Immersion Temperature Probes
Category/Type: Temperature
Type: Sensors
Series: I2-1 Immersion Temperature Probes
Accuracy: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5°C).
Probe Diameter: 1/4" (6.3 mm).
Cable Length: 6' (1.8 m).
Probe Material: 304 SS.
Mounting: 1/2" threaded connection to fit Series IW2 Thermowell.
