Brand: TacoSKU: I125T4S-1

List Price
~~$2,593.00~~

$864.49

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

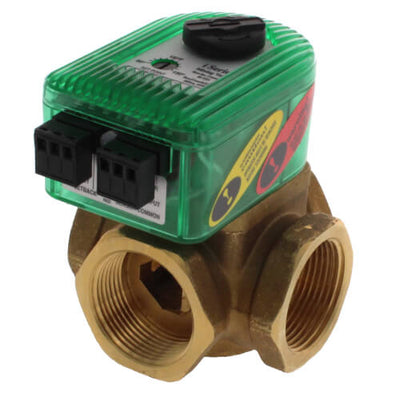

I125T4S-1 | 1-1/4", 4 Way Setpoint I-Series Mixing Valve (Threaded) | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I125T4S-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I125T4S-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for I125T4S-1

Taco 1 1/4" 4-Way I-SerMixVlv (I125T4S-1)This Taco 1 1/4" 4-Way I-SerMixVlv (I125T4S-1) is designed for use in a variety of industrial and commercial applications. It features a durable construction and is designed to provide reliable performance in demanding conditions. The Taco 1 1/4" 4-Way I-SerMixVlv (I125T4S-1) is made from high-quality materials and is designed to withstand the rigors of industrial use. It has a cast iron body and bonnet, and all of its internal components are made from stainless steel. This makes it resistant to corrosion and wear, and it ensures a long service life. The Taco 1 1/4" 4-Way I-SerMixVlv (I125T4S-1) is a versatile valve that can be used in a variety of applications. It is ideal for use in heating and cooling systems, and it can also be used in process control applications. The valve has a wide operating range, and it can be used with a variety of fluids, including water, glycol, and oil. The Taco 1 1/4" 4-Way I-SerMixVlv (I125T4S-1) is easy to install and maintain. It has a compact design, and it can be mounted in a variety of orientations. The valve also has a simple design, and it can be easily disassembled for cleaning and maintenance. Our HVAC supply store offers the best prices and fast shipping so you can complete your projects on time and under budget! Shop now!

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
