I100U3S-1 | 1", 3 Way Setpoint I-Series NPT Mixing Valve (Union Sweat) | Taco

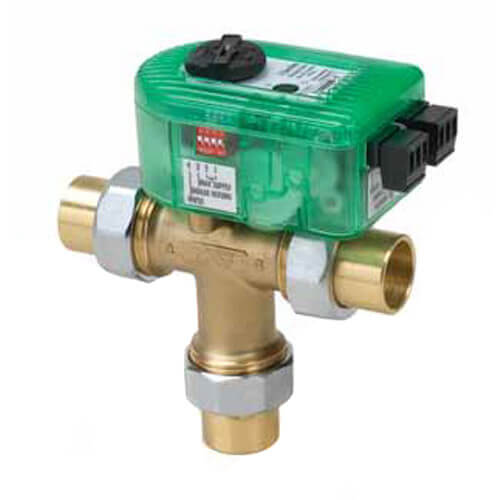

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I100U3S-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I100U3S-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for I100U3S-1

1" 3W Union Valve Set: Experience Precision and Reliability Taco's 1" 3W Union Valve Set is crafted to provide exceptional performance in demanding industrial and commercial applications. With a compact design, this valve set is engineered to deliver reliable flow control in tight spaces. The rugged construction ensures longevity and durability, featuring a durable brass body and stainless steel components that withstand harsh conditions. Its precision machined parts guarantee a leak-tight seal, minimizing maintenance downtime. This valve set offers versatility, designed for use with water, air, or oil systems. Its union design allows for easy installation and maintenance, reducing labor costs and streamlining operations. Key Features: * Compact size for limited space applications * Durable brass body and stainless steel components for longevity * Leak-tight seal for reliable flow control * Versatile use with water, air, or oil systems * Union design for easy installation and maintenance Conclusion: Upgrading to Taco's 1" 3W Union Valve Set ensures efficiency and reliability in your industrial or commercial operations. Order now at our HVAC supply store and benefit from our competitive prices and fast shipping. Enhance your system with the trusted solutions we offer.

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
