I100C3R-1 | 1", 3 Way Outdoor Reset I-Series Mixing Valve (Sweat) | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I100C3R-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I100C3R-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for I100C3R-1

Taco 1" Swt 3W Vlv W/24V Outdoor Act (SKU: I100C3R-1) The Taco 1" Swt 3W Vlv W/24V Outdoor Act is a solenoid-operated, pilot-actuated, three-way valve designed for outdoor use in hydronic heating and cooling systems. It features a heavy-duty cast iron body and stainless steel trim for durability and corrosion resistance. The valve's operation is simple and reliable, with a 24-volt actuator that provides fast and precise control. It also includes a manual override for easy maintenance and troubleshooting. This three-way valve is suitable for a wide range of applications, including zone control, mixing, and diverting flow. Its compact design and convenient mounting options make it easy to install in tight spaces. The Taco 1" Swt 3W Vlv W/24V Outdoor Act is backed by Taco's reputation for quality and reliability, making it an excellent choice for demanding industrial and commercial applications. Shop now at our HVAC supply store for the best prices and fast shipping on your industrial supplies!

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light

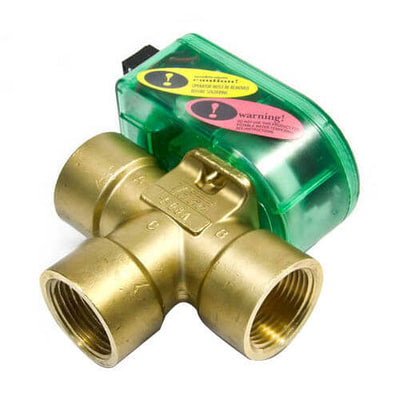

Image is of the NPT Female version
