I100C2R-2 | 1", 2 Way Outdoor Reset I-Series Mixing Valve (Sweat) | Taco

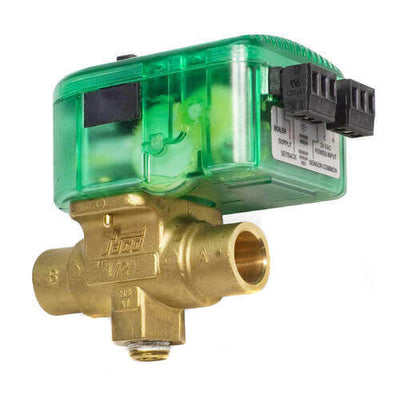

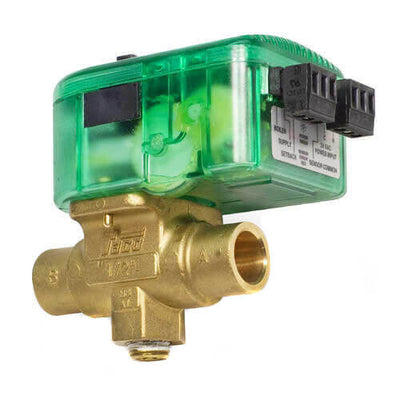

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I100C2R-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I100C2R-2 Documents

Datasheet Installation Instructions More Info

Overview

Details for I100C2R-2

Taco 1"swt 2W VLV W/OUTDOOR RESET (I100C2R-2) The Taco 1"swt 2W VLV W/OUTDOOR RESET (I100C2R-2) is a high-quality valve designed for use in hydronic systems. It features a 2-way valve body with a 1" sweat connection. The valve is actuated by a powerful 2-watt motor, which provides reliable and precise control. The Taco 1"swt 2W VLV W/OUTDOOR RESET (I100C2R-2) is designed for use with outdoor reset controls. This allows the valve to automatically adjust the flow of water through the system based on the outdoor temperature. This can help to improve the efficiency of the heating system and reduce energy costs. The Taco 1"swt 2W VLV W/OUTDOOR RESET (I100C2R-2) is a versatile valve that can be used in a variety of applications. It is ideal for use in residential and commercial hydronic systems. Our HVAC supply store provides the best prices and fast shipping on all your HVAC needs. Shop now!

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries Mixing Valves are a breakthrough in precision, cost effective temperature control for heating systems. The iSeries valves are available in two versions, providing either outdoor reset control or fixed water supply temperature by modulating the position of a 2-way, 3-way or a 4-way valve. Additionally, iSeries valves protect the boiler against flue gas condensation. A microprocessor-based control is built into the valve actuator, to which all wiring connections are made. All-in-one iSeries Mixing Valves deliver optimum zone-by-zone temperature control, with built-in boiler protection.
