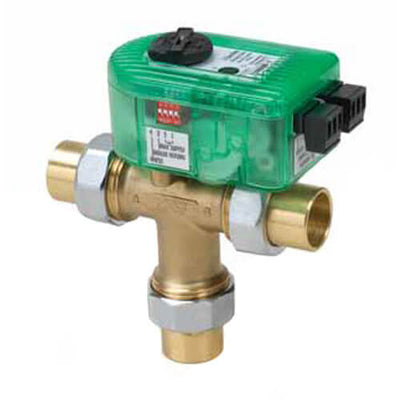

I075U3R-1 | 3/4", 3 Way Outdoor Reset I-Series Mixing Valve (Union Sweat) | Taco

Taco | I075U3R-1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to I075U3R-1

Documents and manuals

Taco I075U3R-1 Documents

Overview

Details for I075U3R-1

The Taco 3/4"swt 85-110F MIXING VALVE (SKU: I075U3R-1) is a durable and high-performance valve designed for mixing hot and cold water applications. Featuring a compact design and rugged construction, this valve is ideal for industrial settings where reliability and efficiency are paramount. The Taco mixing valve ensures precise temperature control with a wide temperature range of 85-110 degrees Fahrenheit. It boasts a durable brass body for maximum strength and longevity, ensuring it can withstand demanding conditions. The valve's NPT connections provide easy installation and maintenance. Its reliable operation and precise temperature control make it an excellent choice for various applications, including hydronic heating and cooling systems, solar thermal systems, and domestic hot water systems. Trust Taco for your industrial valve needs, and order your 3/4"swt 85-110F MIXING VALVE today from our HVAC supply store!

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features
  • 2-way Injection, 3-way or 4-way Mixing
  • Operates Off Constant Power or Relay End Switch
  • Ball Valve Design, High Cv
  • Manual Operation Button
  • Solid State Microprocessor Design
  • Compact Design
  • Easy, One-handed Actuator Removal
  • 125 PSI Shutoff Pressure
  • Plug-in Low Voltage Connections
  • Multi-Status LED Indicator Light
  • Fail Safe Mode
  • Sensors Included
Applications
  • Hot Water Heating Systems
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Hydronic Heating & Cooling
  • Water/Glycol concentrations up to 50%
  • Solar / Geothermal

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light

Specifications

Item Number I075U3R-1
Brand Taco
