I075T3R-1 | 3/4", 3 Way Outdoor Reset I-Series Mixing Valve (Threaded) | Taco

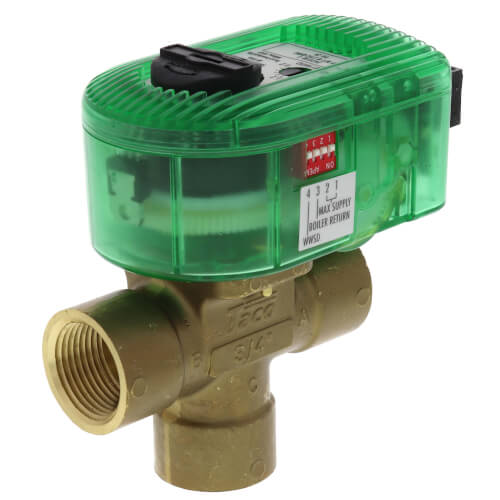

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I075T3R-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I075T3R-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for I075T3R-1

TACO 3/4" NPT 3 Way 24v Outdoor Reset Valve (I075T3R-1) The TACO 3/4" NPT 3 Way 24v Outdoor Reset Valve (I075T3R-1) is a Ð²Ñ‹ÑÐ¾ÐºÐ¾Ñ‚ÐµÑ…Ð½Ð¾Ð»Ð¾Ð³Ð¸Ñ‡Ð½Ñ‹Ð¹ and durable valve designed for a system in need of a reliable solution that is long lasting. This 3 way valve is made with high quality materials, allowing it to be used in a variety of environments. It is perfect for both commercial and industrial applications. The TACO 3/4" NPT 3 Way 24v Outdoor Reset Valve (I075T3R-1) is easy to install and maintain, making it a great choice for any system. Utilizing this product can potentially save you time, money, and energy. Features: * 3/4" NPT connection * 24v operation * Outdoor reset * 3 way valve * Durable construction * Easy to install and maintain Benefits: * Reliable and long lasting * Can be used in a variety of environments * Perfect for both commercial and industrial applications * Can save you time, money, and energy Shop our HVAC supply store for the best prices and fast shipping on the TACO 3/4" NPT 3 Way 24v Outdoor Reset Valve (I075T3R-1) today!

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
