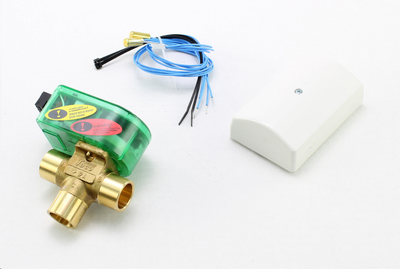

I075C3R-1 | 3/4", 3 Way Outdoor Reset I-Series Mixing Valve w/ Sensor | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I075C3R-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I075C3R-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for I075C3R-1

Efficiently Regulate Temperature with Taco's NCO-I075C3R-1 SWT Outdoor Reset ActuatorThe NCO-I075C3R-1 from Taco is a reliable 3/4" SWT outdoor reset actuator designed to optimize temperature control in hydronic heating systems. Its advanced technology ensures precise modulation of boiler water temperature based on outdoor temperature, resulting in reduced energy consumption and improved comfort.Key Features:- Outdoor temperature compensation for efficient boiler operation- Compact design for space-saving installation- Durable construction for long-lasting performanceApplications:- Ideal for residential and light commercial heating systems- Suitable for boilers, heat pumps, and zone valves- Helps maintain consistent indoor temperatures while minimizing energy usageOur Shop our HVAC supply store offers the most competitive prices and lightning-fast shipping on all your product needs.

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Image is of the NPT Female version

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation

Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
