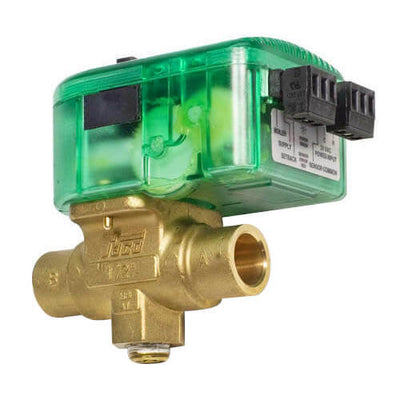

I075C2S-2 | 3/4", 2 Way Setpoint I-Series Mixing Valve w/ Sensor | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I075C2S-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I075C2S-2 Documents

Datasheet Installation Instructions More Info

Overview

Details for I075C2S-2

Taco 3/4" Swt 2Way 24V Setpoint Act (I075C2S-2) The Taco 3/4" Swt 2Way 24V Setpoint Act (I075C2S-2) is a flow control valve designed to provide precise temperature control in various HVAC systems. This valve features a 3/4 inch SWT connection, a 24V setpoint actuator, and a two-way design. The two-way design allows the valve to control the flow of water in either direction, making it suitable for a wide range of applications. The 24V actuator provides accurate and reliable control, ensuring precise temperature regulation. This valve is constructed of high-quality materials to withstand the demands of commercial and industrial HVAC systems. Its durable construction and reliable performance make it an ideal choice for maintaining consistent temperatures in critical applications. Shop now at our HVAC supply store for the best prices and fast shipping!

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries+ Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation
Features:
* Operates Off Constant Power or Relay End Switch
* Ball Valve Design, High Cv
* Manual Operation Button
* Solid-State Microprocessor Design
* Easy, One-Hand Actuator Removal
* Multi-Status LED Indicator Light
