CW2LAXA | Veris CW2 Series Air Quality Sensor, Wall, CO2, Segmented LCD, Temperature Transmitter | Veris Industries

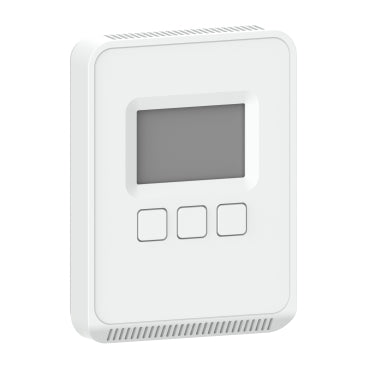

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2LAXA
Documents and manuals
Veris Industries CW2LAXA Documents
Overview
Details for CW2LAXA
WALL MNT CO2 SENS W/LCD DISPLY - [SKU: CW2LAXA] [Brand: Veris Industries]
The Veris Industries Wall Mount CO2 Sensor with LCD Display is a reliable and precise device designed to monitor carbon dioxide (CO2) levels in industrial and commercial environments. This advanced sensor offers continuous monitoring and accurate readings, ensuring a healthy and safe space.
Key Features:
- LCD Display: Provides clear and easy-to-read CO2 level readings.
- Wall Mounting: Allows for convenient placement in various locations.
- Durable Construction: Ensures long-lasting performance in demanding environments.
- Easy Installation: Simple and quick to set up, minimizing downtime.
Applications:
- Indoor Air Quality Monitoring: Ideal for monitoring CO2 levels in factories, offices, schools, and healthcare facilities.
- Greenhouses and Controlled Environments: Helps regulate CO2 levels for optimal plant growth and yield.
- Energy Conservation: Identifies areas with high CO2 levels, indicating potential ventilation issues for energy savings.
- Safety and Compliance: Monitors CO2 levels to ensure compliance with occupational health and safety regulations.
By choosing the Veris Industries Wall Mount CO2 Sensor with LCD Display, you invest in a reliable and effective solution for maintaining safe and healthy air quality in your facilities. Our HVAC supply store offers the best prices and fast shipping for your industrial needs. Order now! The Veris CW2 Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Carbon Dioxide (CO2), Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display size
- 2 inch
- Display Type
- LCD display
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, CO2
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter, NDIR (non-dispersive infrared)
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With CO2 sensor
- Repeat accuracy
- +/- 20 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481901545
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
