I075C2R-2 | 3/4", 2 Way Outdoor Reset I-Series Mixing Valve w/ Sensor | Taco

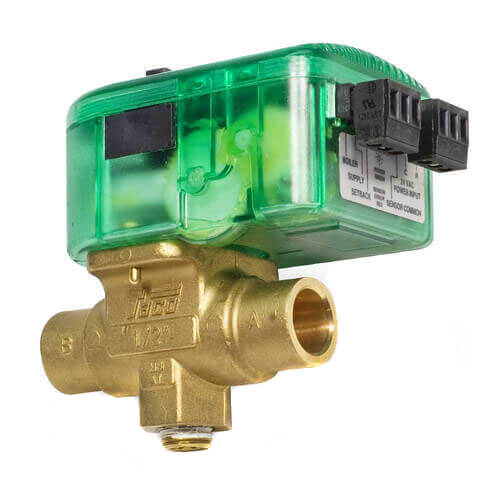

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I075C2R-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco I075C2R-2 Documents

Datasheet Installation Instructions More Info

Overview

Details for I075C2R-2

3/4" SWT 2W VLV W/OUTDOOR RESET Taco I075C2R-2 3/4" SWT 2W VLV W/OUTDOOR RESET is a highly efficient and reliable valve designed for use in outdoor applications. Its robust construction and advanced features make it ideal for demanding industrial and commercial environments. Key Features: * 3/4" SWT connection for compatibility with various piping systems * 2-way valve configuration for precise flow control * Outdoor reset functionality for automatic adjustment based on outdoor temperature, optimizing system efficiency * Durable bronze body for corrosion resistance and long service life * NPT threaded connections for secure and leak-proof installation Benefits: * Precise flow regulation for optimal system performance * Reduced energy consumption and cost savings through outdoor reset * Enhanced durability for long-term reliability even in harsh outdoor conditions * Easy installation and maintenance with standard NPT connections Applications: Taco I075C2R-2 3/4" SWT 2W VLV W/OUTDOOR RESET is widely used in: * HVAC systems for temperature control * Industrial process control applications * Water management and distribution systems At our HVAC supply store, we offer the best prices and fast shipping on Taco valves. Trust us for your industrial supply needs.

iSeries Mixing Valves

Precise, Cost-Effective Temperature Control for Your Heating Systems

Taco iSeries ^® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.

Performance Data

Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892

Features

2-way Injection, 3-way or 4-way Mixing
Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid State Microprocessor Design
Compact Design
Easy, One-handed Actuator Removal
125 PSI Shutoff Pressure
Plug-in Low Voltage Connections
Multi-Status LED Indicator Light
Fail Safe Mode
Sensors Included

Applications

Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning Systems
Hydronic Heating & Cooling
Water/Glycol concentrations up to 50%
Solar / Geothermal

Taco iSeries® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
* Available in 2-way, 3-way or 4-way injection configurations
* For either outdoor reset control or fixed water supply temperature applications
* Protects boiler against flue gas condensation

Features:

Operates Off Constant Power or Relay End Switch
Ball Valve Design, High Cv
Manual Operation Button
Solid-State Microprocessor Design<
Easy, One-Hand Actuator Removal
Multi-Status LED Indicator Light
