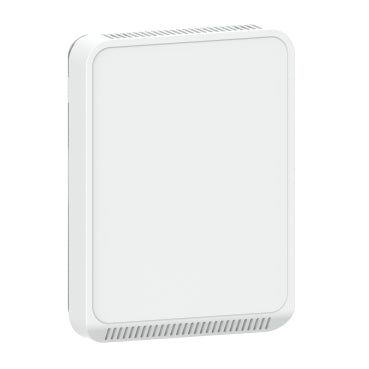

HW2XA2M | Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Temperature, 100K Thermistor | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XA2M
Documents and manuals
Veris Industries HW2XA2M Documents
Overview
Details for HW2XA2M
NCO HW2XA2M Wall Sensor by Veris Industries:
The NCO HW2XA2M Wall Sensor from Veris Industries accurately measures humidity and temperature, providing real-time data for monitoring environmental conditions in industrial settings. Designed for precision monitoring, this sensor offers a 2% humidity accuracy and a wide temperature range of 100K.
Its compact and wall-mountable design allows for easy installation and integration into existing monitoring systems. The sensor's durable construction ensures reliable performance even in harsh industrial environments. With its high accuracy and versatile applications, the NCO HW2XA2M Wall Sensor is an essential tool for ensuring optimal environmental conditions in manufacturing, HVAC, and other industrial settings.
Key Features:
* ±2% humidity accuracy
* 100K temperature range
* Wall-mountable design
* Durable construction
Applications:
* Environmental monitoring in industrial settings
* HVAC systems
* Manufacturing and processing
* Scientific research and development
Our HVAC supply store offers the best prices and fast shipping on the NCO HW2XA2M Wall Sensor. Order now to enhance your industrial monitoring capabilities! The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 20K Thermistor and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- 20 kOhm NTC thermistor, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902306
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
