HW2XA2G | Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Temperature, 10K CPC Thermistor | Veris Industries

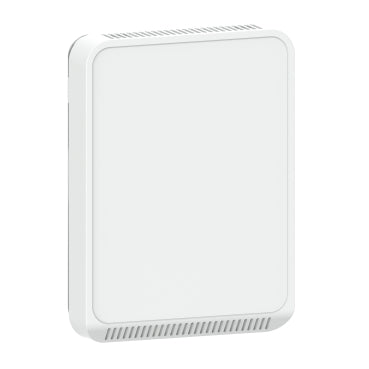

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XA2G
Documents and manuals
Veris Industries HW2XA2G Documents
Overview
Details for HW2XA2G
Veris Industries HW2XA2G 2%RH WALLMT XMTR W/TEMP
The Veris Industries HW2XA2G 2%RH WALLMT XMTR W/TEMP is a high-quality transmitter designed for use in industrial and commercial applications. This transmitter is constructed from durable materials and features a rugged design that can withstand harsh environmental conditions. The HW2XA2G is equipped with a variety of features that make it ideal for use in a wide range of applications, including:
- 2% relative humidity accuracy
- Wall-mounted design
- Temperature measurement capabilities
- Wide operating temperature range (-40°F to +185°F)
- Compact size
The HW2XA2G is also easy to install and maintain, making it a great choice for businesses of all sizes. If you are looking for a reliable and accurate transmitter, the Veris Industries HW2XA2G is the perfect solution.
We offer the best prices and fast shipping for your products! The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 10K CPC Thermistor and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- 10 kOhm T2 CPC thermistor, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902276
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
